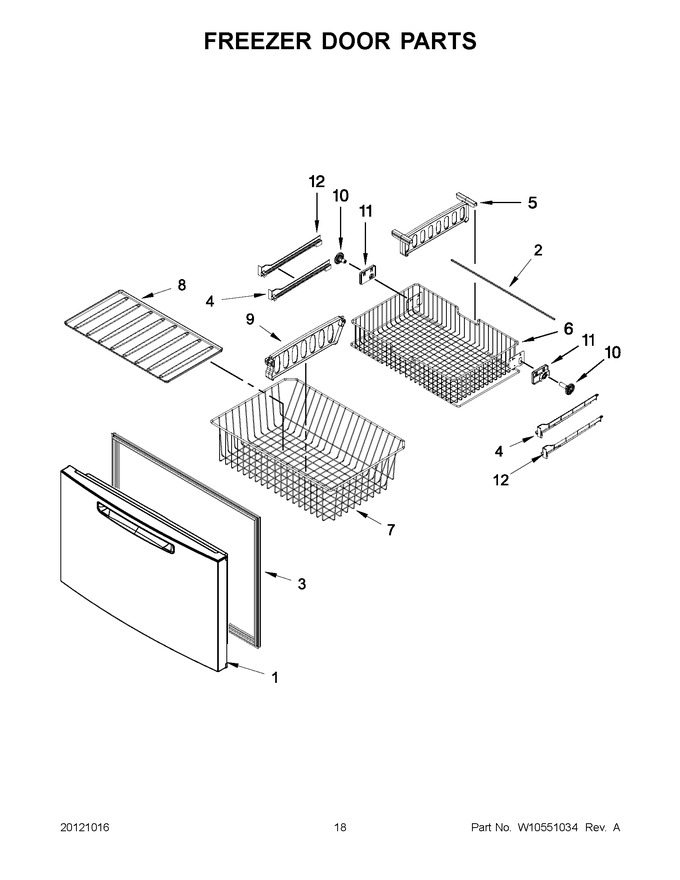

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107113F | Freezer Door (sparkle Steel) |
|
- | |||||
| 2 | W11173556 | Shaft, Rack (Replaces: 12812904WD) |
|
$ 29.14 | |||||
| 3 | WPW10714545 | Gasket, Door (grey) (Replaces: W10443322) |
|
$ 291.24 | |||||
| 4 | WPW10280608 | Cradle, Basket (left Hand) (Replaces: W10280608) |
|
$ 82.94 | |||||
| 4 | WPW10280613 | Cradle, Basket (right Hand) (Replaces: W10280613) |
|
$ 82.94 | |||||
| 5 | W10146439 | Divider, Upper Basket |
|
$ 29.39 | |||||
| 6 | W11218042 | Basket, Upper (Replaces: W10348249) |
|
$ 183.09 | |||||
| 7 | WPW10503184 | Basket, Lower (Replaces: W10503184) |
|
$ 225.07 | |||||
| 8 | WP67006104 | Tray, Lower Basket (Replaces: 13025201) |
|
$ 80.38 | |||||
| 9 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 83.23 | |||||
| 10 | WPW10474716 | Gear Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 10 | WPW10474715 | Gear Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 | ||||
| 11 | W10348259 | Gear Mount (left Hand) |
|
$ 80.88 | |||||
| 11 | W10348260 | Gear Mount (right Hand) |
|
$ 80.91 | |||||
| 12 | W11489993 | Rack (left Hand) (Replaces: W10516603) |
|
Immediately | $ 21.11 | ||||
| 12 | W11489994 | Rack (right Hand) (Replaces: W10516602) |
|
Immediately | $ 21.11 |
