SELECT A DIAGRAM

01 - Top And Cabinet Parts

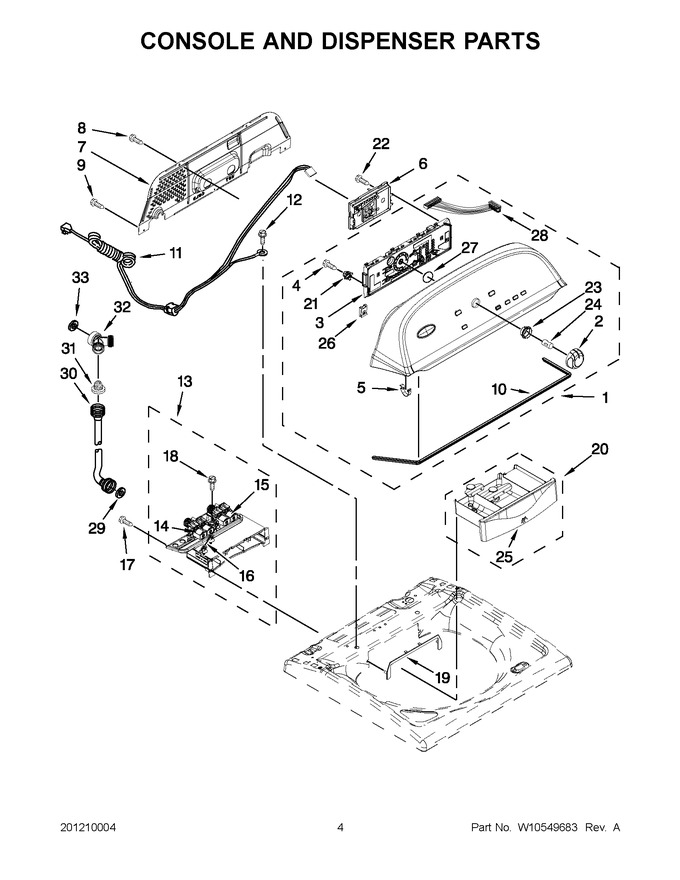

02 - Console And Dispenser Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10469858		Console Assembly (white)		Appelez-nous	-
2	WPW10251392		Knob Assembly   (Replaces: W10251392)				$ 53.60
3	WPW10362632		User Interface   (Replaces: W10362632)				$ 216.19
4	W10853898		Screw   (Replaces: W10219342)				$ 7.36
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
6	W11088078		Control Unit Assembly,machine & Motor   (Replaces: W10480659)		Appelez-nous	-
7	W10420984		Panel, Console Rear Cover				$ 310.35
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
10	W10280079		Seal, Console		Appelez-nous	-
11	W10453573		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W10601450		Housing Assembly - Dispenser   (Replaces: W10287482)		Appelez-nous	-
14	WPW10240976		Valve, Cold Water Inlet   (Replaces: W10240976)				$ 167.61
15	WPW10240975		Valve, Hot Water Inlet   (Replaces: W10240975)				$ 145.86
16	W10368547		Harness, Valve		Appelez-nous	-
17	W11700520		Screw, Dispenser Housing Mounting   (Replaces: 3400061)				$ 12.85
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 7.92
19	W10240946		Bezel, Dispenser				$ 23.60
20	WPW10658443		Drawer, Dispenser Assembly   (Replaces: W10240958)				$ 103.41
21	W10274524		Tensioner Fascia		Appelez-nous	-
22	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
23	W10325119		Spacer, Knob		Appelez-nous	-
24	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
25	WPW10287476		Facia, Dispenser   (Replaces: W10287476)				$ 58.61
26	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 7.32
27	W10323092		Seal, User Interface		Appelez-nous	-
28	W10285493		Cable, User Interface				$ 95.13
29	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 7.34
30	WP89503		Hose, Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 21.68
30	WP89503		Hose, Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 21.68
31	285452A		Washer, Filter   (Replaces: 353362)			Immediately	$ 8.72
32	WPW10269488		Connector- Hose, Y   (Replaces: W10269488)				$ 80.68
33	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 10.40
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 25.24
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 19.58

    View Diagram in Separate Window       Print Part List
