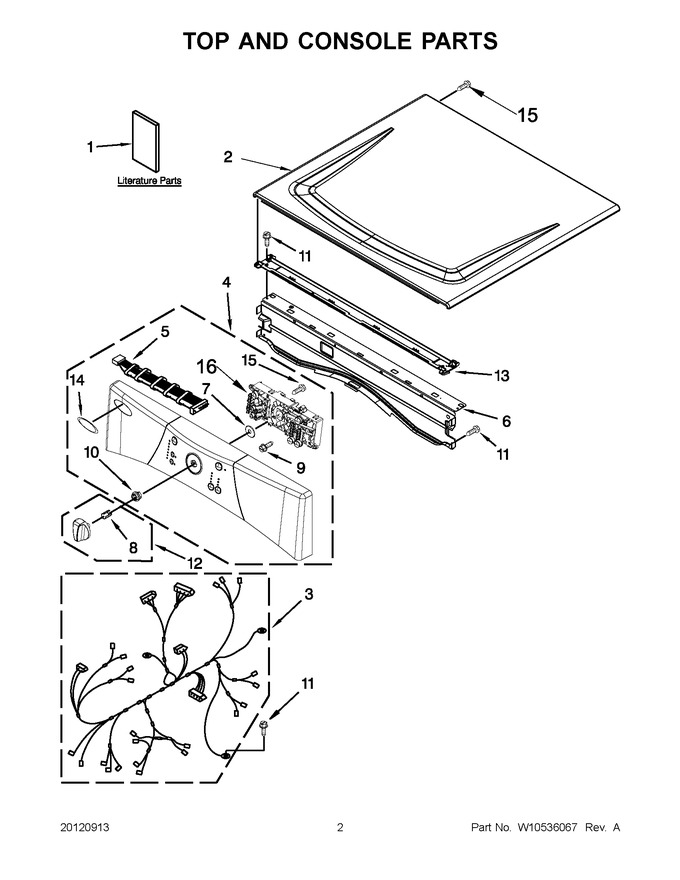

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Burner Assembly
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339518 | Use & Care Guide |
|
- | |||||
| 1 | W10443109 | Tech Sheet |
|
- | |||||
| 2 | WPW10336080 | Top (white) (Replaces: W10336080) |
|
$ 331.99 | |||||
| 3 | W10251443 | Harness, Main |
|
$ 304.56 | |||||
| 4 | W10215747 | Panel, Console |
|
$ 244.73 | |||||
| 5 | W10259049 | Cable, User Interface |
|
$ 170.48 | |||||
| 6 | WP8565237 | Bracket, Console (Replaces: 8565237) |
|
$ 189.77 | |||||
| 7 | 8572039 | Seal, User Interface |
|
- | |||||
| 8 | W10153920 | Clip, Spring |
|
- | |||||
| 9 | W10006580 | Screw |
|
- | |||||
| 10 | W10215835 | Bushing-shaft Knob |
|
$ 30.38 | |||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 12 | WPW10236098 | Knob, Control (white) (Replaces: W10236098) |
|
$ 61.27 | |||||
| 13 | WPW10266747 | Channel-water, Dryer (Replaces: W10266747) |
|
$ 73.96 | |||||
| 14 | W10117943 | Badge, Whirlpool |
|
- | |||||
| 15 | 3400238 | Screw |
|
$ 12.03 | |||||
| 16 | W10247234 | Assembly, User Interface |
|
$ 244.08 |
