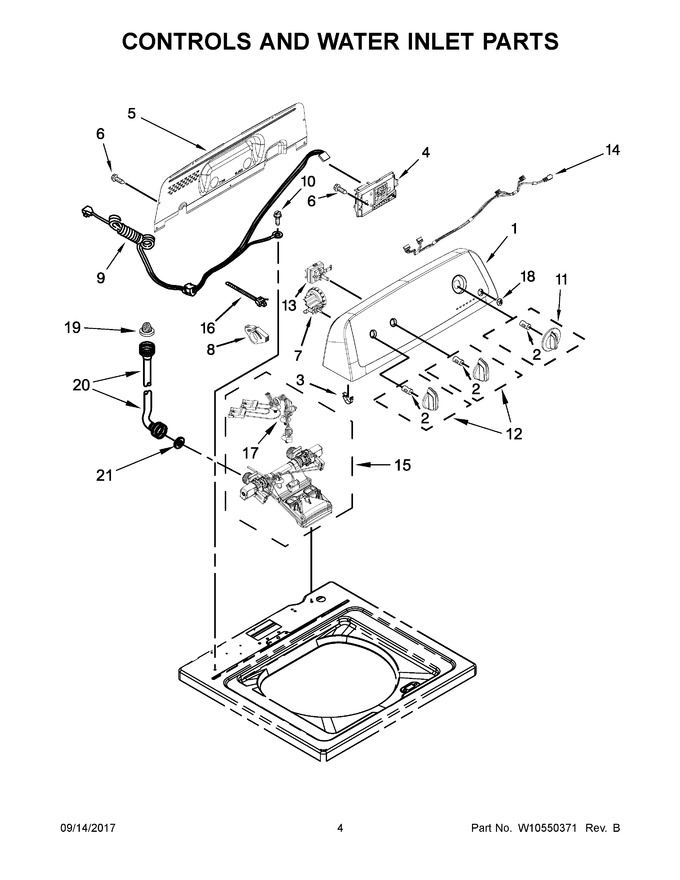

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10544406 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W10484681 | Control Unit Assembly, Machine & Motor |
|
Immediately | $ 223.58 | ||||
| 5 | W10409320 | Panel, Console Rear Cover |
|
$ 237.41 | |||||
| 6 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 7 | WPW10450959 | Switch, Water Level (Replaces: W10450959) |
|
$ 173.93 | |||||
| 8 | WPW10663966 | Clamp, Hose (Replaces: W10348582) |
|
$ 201.83 | |||||
| 9 | WPW10525192 | Cord, Power (Replaces: W10525192) |
|
$ 146.72 | |||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 11 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10453946) |
|
Immediately | $ 7.50 | ||||
| 12 | WPW10453947 | Assembly, Control Knob (white) (Replaces: W10453947) |
|
$ 49.28 | |||||
| 13 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 122.49 | |||||
| 14 | W10475254 | Harness, Upper |
|
$ 138.47 | |||||
| 15 | WPW10683653 | Inlet Assembly, Water (Replaces: W10472844) |
|
$ 194.84 | |||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 17 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 175.43 | |||||
| 18 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 68.40 | ||||
| 19 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 8.72 | ||||
| 20 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 21 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 20A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 21.68 |
