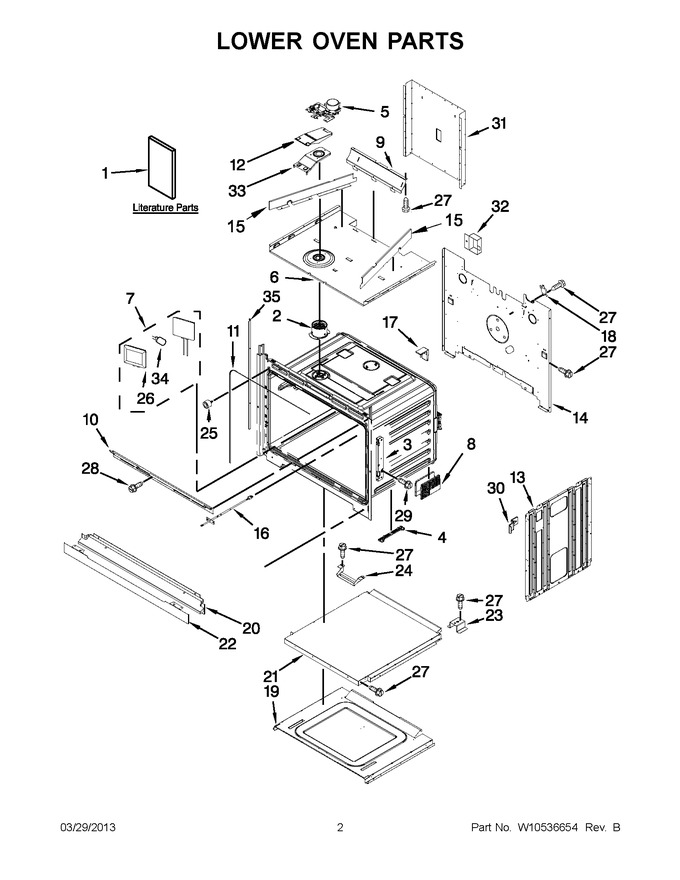

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10492435		Tech Sheet (english/french)		Appelez-nous	-
1	W10075750		Installation Instructions (english/french)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 22.99
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 51.74
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 24.08
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10282980		Top, Chassis				$ 111.56
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 86.70
8	W10821321		Foot, Base   (Replaces: W10318219)				$ 30.16
9	W10351258		Bracket, Blower Deflector		Appelez-nous	-
10	W10283040		Vent, Center 30`` Double				$ 123.08
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 65.12
12	W10616810		Exhaust, Vent Cover   (Replaces: W10282985)				$ 62.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282990		Back, Chassis		Appelez-nous	-
15	W10507009		Chassis, Deflector		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 133.43
17	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 7.57
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 121.07
19	W11238787		Base, Chassis   (Replaces: W10282900)				$ 314.69
20	WPW10327374		Assembly, Bottom Vent (stainless)   (Replaces: W10327374)				$ 312.10
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 198.05
22	WPW10327377		Trim, Bottom Vent (stainless)   (Replaces: W10327377)				$ 162.07
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Chassis, Bottom Duct Spacer				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.91
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 86.70
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
28	WP4450038		Screw   (Replaces: 4450038)				$ 7.47
29	WPW10254050		Screw   (Replaces: W10254050)				$ 8.30
30	W10347649		Spacers, Front				$ 13.52
31	W10283000		Duct, Chassis Back		Appelez-nous	-
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Exhaust Vent   (Replaces: W10282984)				$ 29.02
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 103.05
35	W10536161		Trim, Side Mounting, Rail Side (left)   (Replaces: W10504410)				$ 45.56
35	W10536161		Trim, Side Mounting, Rail Side (right)   (Replaces: W10504409)				$ 45.56
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 111.64
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 112.38
