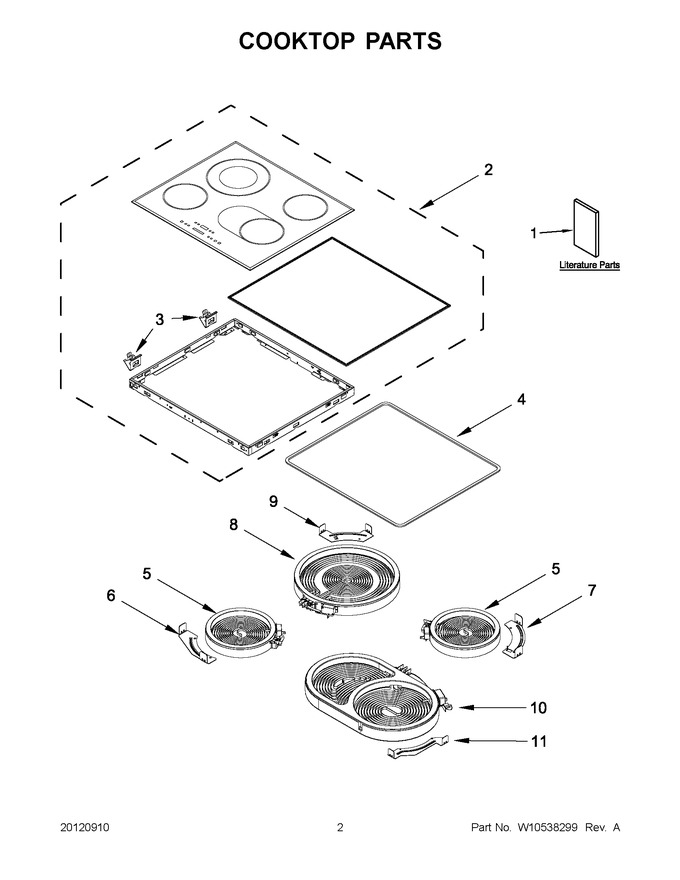

01 - Cooktop Parts
02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10537902 | Installation Instructions |
|
- | |||||
| 1 | W10537901 | Use And Care Guide |
|
- | |||||
| 2 | W10483520 | Cooktop, (black Glass With Stainless Trim) |
|
$ 730.47 | |||||
| 3 | W10483503 | Spring, Clamping |
|
$ 8.53 | |||||
| 4 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 147.20 | ||||
| 5 | W10483521 | Heating Element 145mm 1100 Watts |
|
- | |||||
| 6 | W10483529 | Bracket Heating Element 145mm |
|
- | |||||
| 7 | W10483532 | Bracket Heating Element 145mm Rear |
|
- | |||||
| 8 | W10483522 | Heating Element 210mm 1935/640 Watts |
|
- | |||||
| 9 | W10483530 | Bracket Heating Element 210mm |
|
- | |||||
| 10 | W10532678 | Heating Element Oval 1800 Watts 240 Volts (Replaces: W10483525) |
|
- | |||||
| 11 | W10483531 | Bracket Heating Element Oval |
|
- |
