01 - Control Panel & Drawer Parts

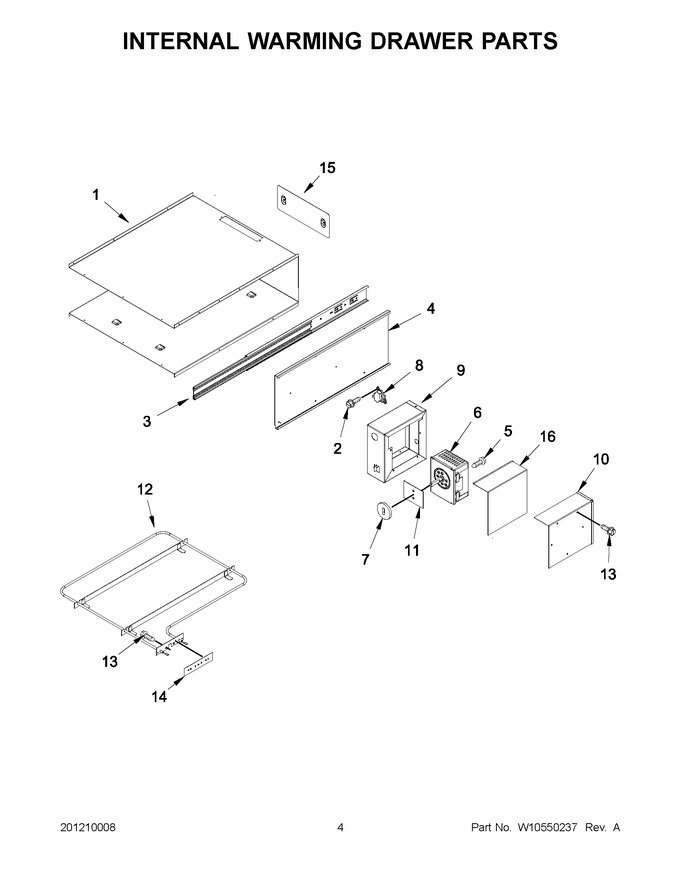

02 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10684521		Wrapper   (Replaces: 9762303)		Appelez-nous	-
2	313806		Screw		Appelez-nous	-
3	WPW10188461		Assembly, Slide   (Replaces: W10188461)			Immediately	$ 121.53
4	W10299387		Wall, Left Cavity		Appelez-nous	-
4	9762307		Wall, Right Cavity				$ 78.87
5	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 6.57
6	W11708324		Control   (Replaces: W10121337)				$ 165.42
7	W10117362		Gasket, Control		Appelez-nous	-
8	9763126		Fuse, Thermal				$ 85.04
9	9763122		Enclosure, Electric		Appelez-nous	-
10	W10182072		Cover, Enclosure   (Replaces: 9763121)				$ 54.23
11	W10118113		Seal, Switch		Appelez-nous	-
12	9762343		Element, Heating		Appelez-nous	-
13	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
14	W10118049		Seal, Heating Element		Appelez-nous	-
15	W10118073		Shield, Heat		Appelez-nous	-
16	W10182072		Gasket, Enclosure   (Replaces: W10117363)				$ 54.23
NI	W10355016		Accessories, Ss Cleaner		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10129043		Wiring Harness Parts, Harness, Wire (main)				$ 293.02
NI	W10129023		Wiring Harness Parts, Power Cord		Appelez-nous	-
NI	W10131847		Wiring Harness Parts, Sensor, Sealed				$ 229.51
NI	4452601		Wiring Harness Parts, Strain Relief		Appelez-nous	-
NI	W10242695A		Accessories, Serving Pan, 1/2 Size				$ 84.78
NI	W10242694A		Accessories, Serving Pan, 1/3 Size				$ 130.65
NI	W10355010		Accessories, Kitchen & Appliance Cleaner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
