SELECT A DIAGRAM

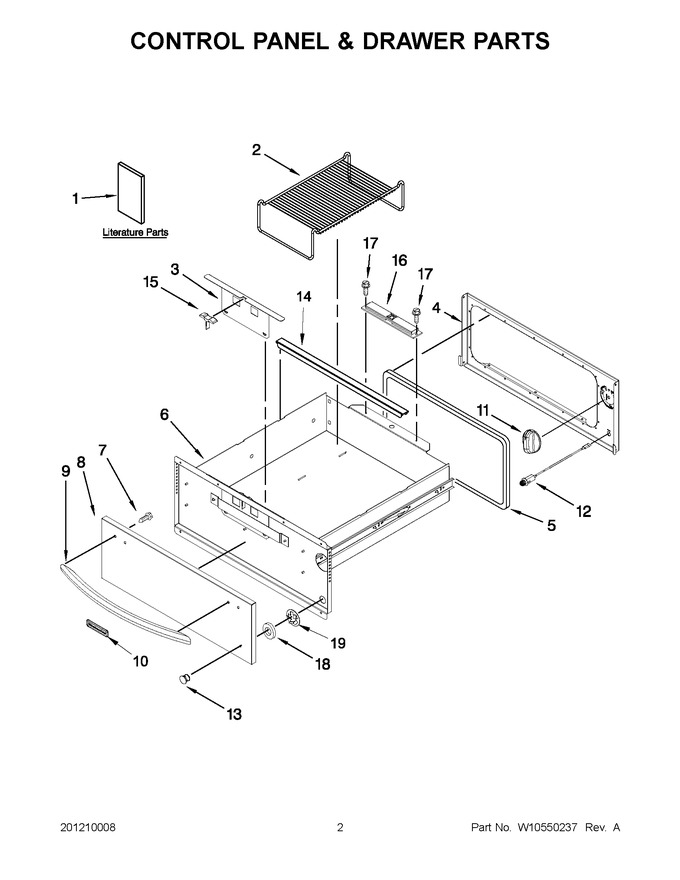

01 - Control Panel & Drawer Parts


02 - Internal Warming Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10064720		Tech Sheet		Appelez-nous	-
1	W10508321		Use & Care Guide		Appelez-nous	-
1	W10513490		Installation Instructions		Appelez-nous	-
2	8273277		Rack, Warming Drawer				$ 99.80
3	W10162376		Slide, Vent				$ 96.82
4	W10306304		Panel, Front		Appelez-nous	-
5	W10164996		Gasket, Drawer		Appelez-nous	-
6	9763127		Assembly, Drawer		Appelez-nous	-
7	WP4449743		Screw   (Replaces: 4449743)				$ 6.80
8	W10139503		Panel, Door		Appelez-nous	-
9	W10525156		Handle, Drawer		Appelez-nous	-
10	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 52.48
11	W10854530		Knob, Thermostat   (Replaces: 4455984)				$ 15.71
12	W10489562		Light, Indicator				$ 91.92
13	9763644		Lens, Light (custom Wood, Panel Only)		Appelez-nous	-
13	4456314		Lens, Light (stainless)				$ 91.89
14	W10409136		Rail, Pan		Appelez-nous	-
15	9763125		Grip, Vent				$ 72.07
16	W10035910		Magnet				$ 181.67
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
18	4456861		Spacer, Lens				$ 6.66
19	4456862		Clip, Lens Retainer				$ 6.63

    View Diagram in Separate Window       Print Part List
