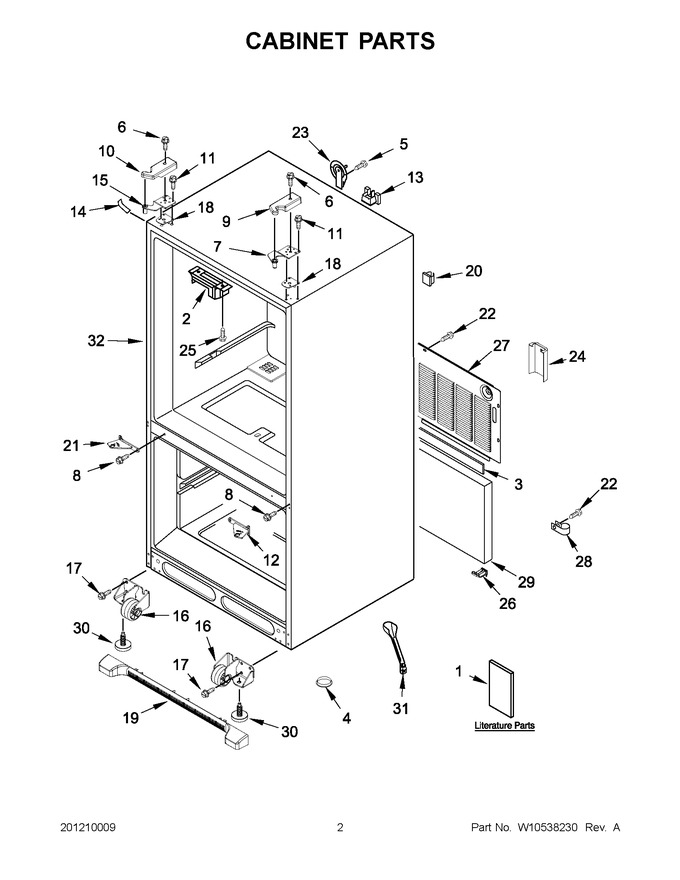

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10326027 | Owners Manual |
|
- | |||||
| 1 | W10475388 | Tech Sheet |
|
- | |||||
| 1 | W10321164 | Tag, Energy |
|
- | |||||
| 2 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 17.98 | |||||
| 3 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 4 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 5 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 6 | 12992603 | Screw |
|
$ 9.30 | |||||
| 7 | W10210891 | Top Hinge (right Hand) |
|
$ 78.10 | |||||
| 8 | W11573362 | Screw (Replaces: W10339086) |
|
$ 13.25 | |||||
| 9 | W10153131 | Cover, Right Hinge (black) |
|
- | |||||
| 10 | W10892762 | Cover, Left Hinge (black) (Replaces: W10153130) |
|
$ 17.60 | |||||
| 11 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 12 | W10210883 | Hinge, Center (rt) (black) |
|
$ 72.68 | |||||
| 13 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 14 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 15 | W10892768 | Top Hinge (left Hand) (Replaces: W10210890) |
|
$ 68.84 | |||||
| 16 | W11820445 | Roller Assy. (front) (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 16 | W11820444 | Roller Assy. (front) (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 17 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 18 | 12999502 | Shim, Hinge (right Hand) |
|
$ 90.54 | |||||
| 18 | 12999501 | Shim, Hinge (left Hand) |
|
$ 89.58 | |||||
| 19 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561N) |
|
$ 139.11 | |||||
| 20 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 7.35 | |||||
| 21 | W11747629 | Hinge, Center (lt) (black) (Replaces: W10210882) |
|
Immediately | $ 48.98 | ||||
| 22 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 23 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 24 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 25 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 26 | 12831101 | Tube, Dual Sweep |
|
$ 11.73 | |||||
| 27 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 28 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 29 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 30 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 31 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 41.61 | ||||
| 32 | N/P | Cabinet (not A Servicable Part) |
|
- |
