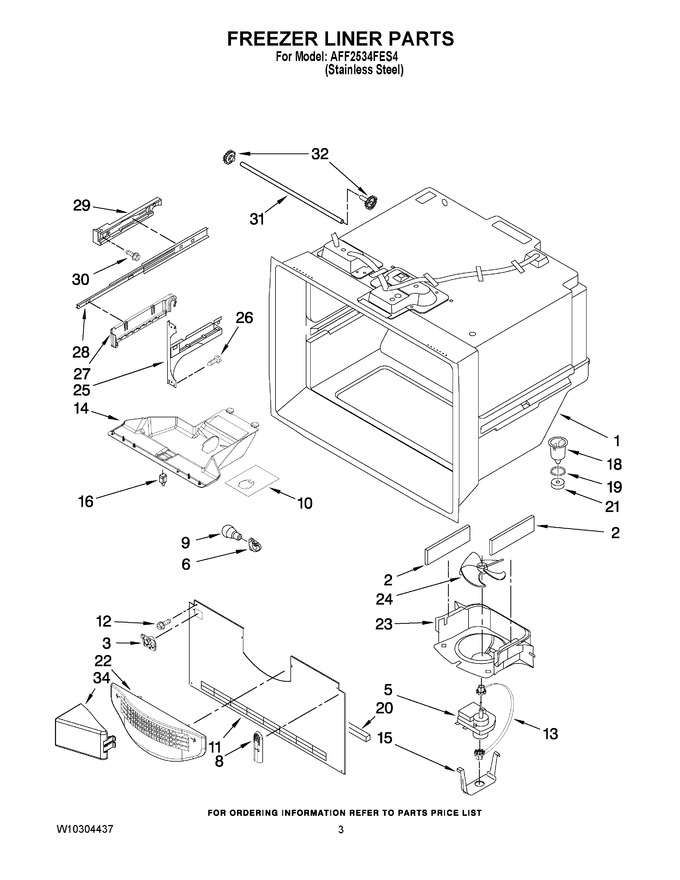

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | W11448709 | Guide- Fill Tube (Replaces: 12932103) |
|
$ 23.28 | |||||
| 5 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 70.88 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 12.48 | ||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 10.17 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 20.96 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 12226112) |
|
$ 84.62 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | W10121318 | Grommet |
|
$ 45.72 | |||||
| 14 | WPW10277025 | Module-fz Light (Replaces: W10277025) |
|
$ 120.96 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 33.57 | ||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 20 | W11159728 | Gasket, Bottom (Replaces: A3189396) |
|
Immediately | $ 25.97 | ||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.00 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024803) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | WPW10330993 | Bracket-door (right) (Replaces: W10122148) |
|
$ 149.48 | |||||
| 25 | WPW10330991 | Bracket-door (left) (Replaces: W10122147) |
|
$ 147.88 | |||||
| 26 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 7.71 | |||||
| 27 | WPW10280608 | Cradle, Basket (left) (Replaces: W10280608) |
|
$ 82.94 | |||||
| 27 | WPW10280613 | Cradle, Basket (right) (Replaces: W10280613) |
|
$ 82.94 | |||||
| 28 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 29 | W10261200 | Adapter, Slide (right) |
|
- | |||||
| 29 | W10261199 | Adapter, Slide (left) |
|
- | |||||
| 30 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 31 | W11028221 | Shaft (Replaces: 12812903WD) |
|
$ 29.92 | |||||
| 32 | 12002497 | Gear (includes Lh & Rh) |
|
Immediately | $ 20.26 | ||||
| 34 | W10157765 | Diverter-air |
|
$ 83.57 |
