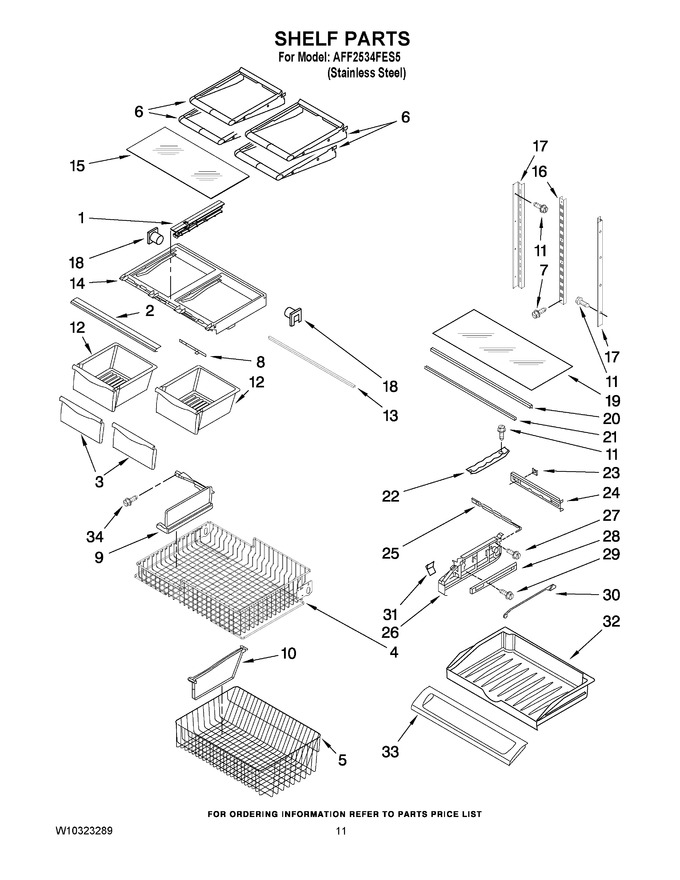

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10326469 | Rail, Center Crisper (Replaces: 12796401) |
|
Immediately | $ 30.03 | ||||
| 2 | W10231344 | Trim, Crisper |
|
$ 58.15 | |||||
| 3 | W11206718 | Crisper Pan, Front (Replaces: 12643802SP) |
|
Immediately | $ 291.99 | ||||
| 4 | 12896403 | Basket, Freezer (upper) |
|
- | |||||
| 5 | WPW10503184 | Basket, Freezer (lower) (Replaces: 13016003) |
|
$ 225.07 | |||||
| 6 | 12654610 | Shelf (4) |
|
- | |||||
| 7 | W10215666 | Screw |
|
$ 8.58 | |||||
| 8 | WP67005864 | Slide, Humidity Control (2) (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 9 | 12693802 | Divider, Basket (upper) |
|
- | |||||
| 10 | 12659608 | Divider, Basket Lower |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 12 | WP67004515 | Pan, Crisper (Replaces: 12804601SP) |
|
Immediately | $ 159.05 | ||||
| 13 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 101.03 | |||||
| 14 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 260.79 | ||||
| 15 | WP67006704 | Glass, Crisper Cover (Replaces: 12204824) |
|
$ 237.09 | |||||
| 16 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 17 | W10251971 | Ladder, Side |
|
$ 53.52 | |||||
| 18 | WP13062602 | Support, Crisper Frame (Replaces: 13062602) |
|
$ 76.38 | |||||
| 19 | W11033333 | Glass, Pantry (Replaces: 12204830) |
|
$ 212.25 | |||||
| 20 | W11812285 | Trim, Pantry Glass (Replaces: 12655902SP) |
|
$ 48.00 | |||||
| 21 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 97.52 | |||||
| 22 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 23 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 19.88 | |||||
| 24 | 12656202 | Housing, Control |
|
$ 133.96 | |||||
| 25 | WP67003793 | Slide, Control (Replaces: 12655402) |
|
Immediately | $ 70.64 | ||||
| 26 | W10874836 | Endcap, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 34.59 | ||||
| 26 | W10874836 | Endcap, Pantry (right) (Replaces: 12656019) |
|
Immediately | $ 34.59 | ||||
| 27 | WP98165 | Screw (4) (Replaces: 12990504V) |
|
$ 7.71 | |||||
| 28 | WPW10235370 | Glide, Pantry (2) (Replaces: W10235370) |
|
Immediately | $ 268.25 | ||||
| 29 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.54 | |||||
| 30 | WP67003795 | Bar, Temp Cont. (Replaces: 12655304) |
|
$ 7.61 | |||||
| 31 | W11498983 | Knob, Control (Replaces: 12655204V) |
|
$ 27.58 | |||||
| 32 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 166.87 | |||||
| 33 | W10827015 | Lid, Pantry (Replaces: 12656816) |
|
Immediately | $ 177.49 | ||||
| 34 | 12990601 | Screw |
|
- |
