| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

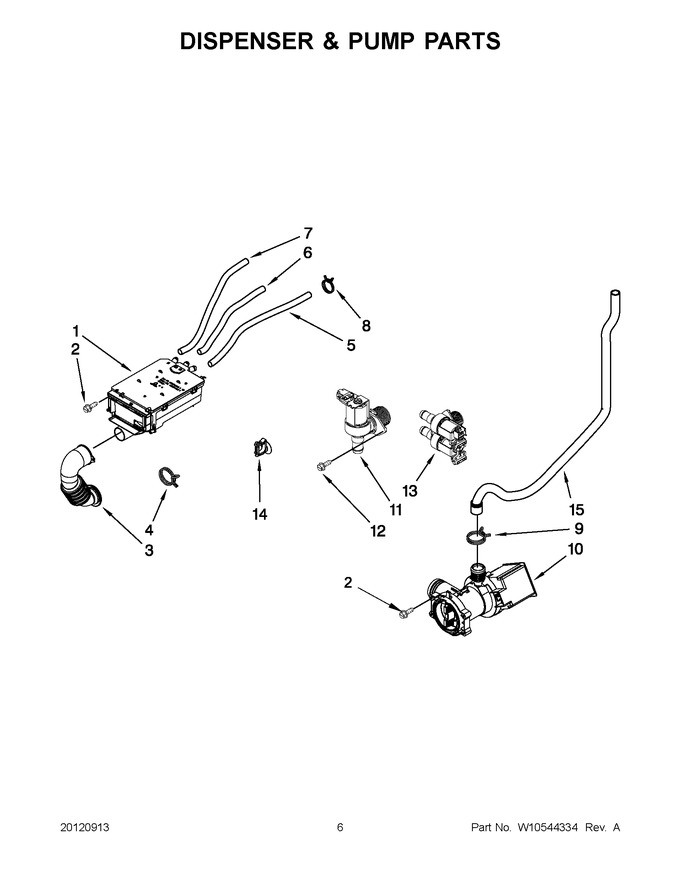

| 1 | WPW10215637 | Dispenser, Complete Assembly (Replaces: W10215637) |
|
Immediately | $ 192.83 | ||||
| 2 | W10193100 | Screw |
|
$ 12.99 | |||||
| 3 | W10193052 | Hose, Dispenser-tub |
|
$ 83.22 | |||||
| 4 | W10193110 | Clamp, Hose |
|
- | |||||
| 5 | W10192979 | Hose,(hot) Valve-dispenser |
|
$ 41.46 | |||||
| 6 | W10192978 | Hose, (cold) Valve-dispenser |
|
$ 41.96 | |||||
| 7 | W10192977 | Hose, Dispenser |
|
$ 41.91 | |||||
| 8 | W10193111 | Clamp, Inlet Hose |
|
$ 10.48 | |||||
| 9 | W10193106 | Clamp, Drain Hose-pump |
|
$ 12.44 | |||||
| 10 | WPW10465252 | Pump (Replaces: W10192988) |
|
Immediately | $ 218.25 | ||||
| 11 | WPW10192990 | Valve, Single (Replaces: W10192990) |
|
Immediately | $ 167.06 | ||||
| 12 | W10193107 | Screw |
|
- | |||||
| 13 | WPW10192991 | Valve, Double (Replaces: W10192991) |
|
Immediately | $ 194.53 | ||||
| 14 | W10193098 | Retainer, Clamp (valve Wire) |
|
$ 11.59 | |||||
| 15 | WPW10192976 | Hose, Drain (Replaces: W10192976) |
|
Immediately | $ 22.29 |
