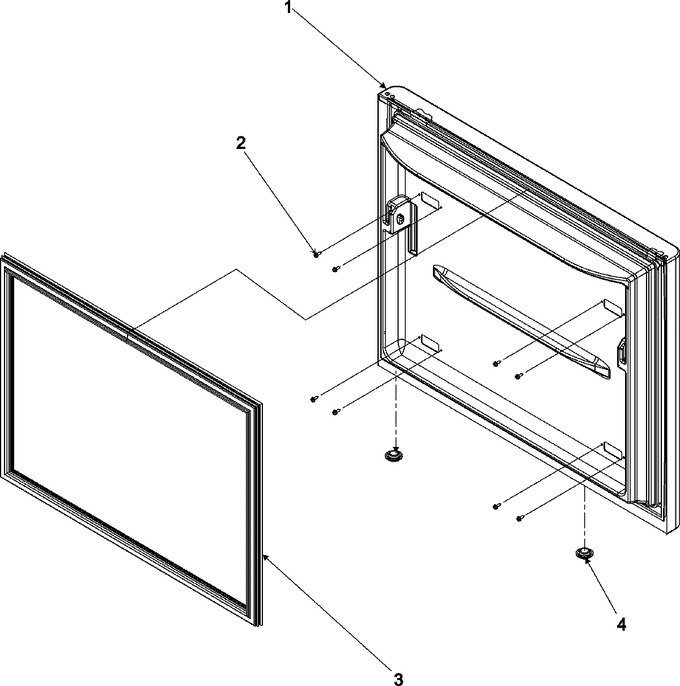

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006807		Door Assy., Frz. Foam (wht)	10	Appelez-nous	-
2	12991101		Screw, Sm   (Replaces: 67006408)	10			$ 13.47
3	W10443319		Gasket, Fz Door (wht)   (Replaces: W10133249)	10			$ 348.84
4	10712401		Plug, Vent (wht)	10			$ 7.79

    View Diagram in Separate Window       Print Part List
