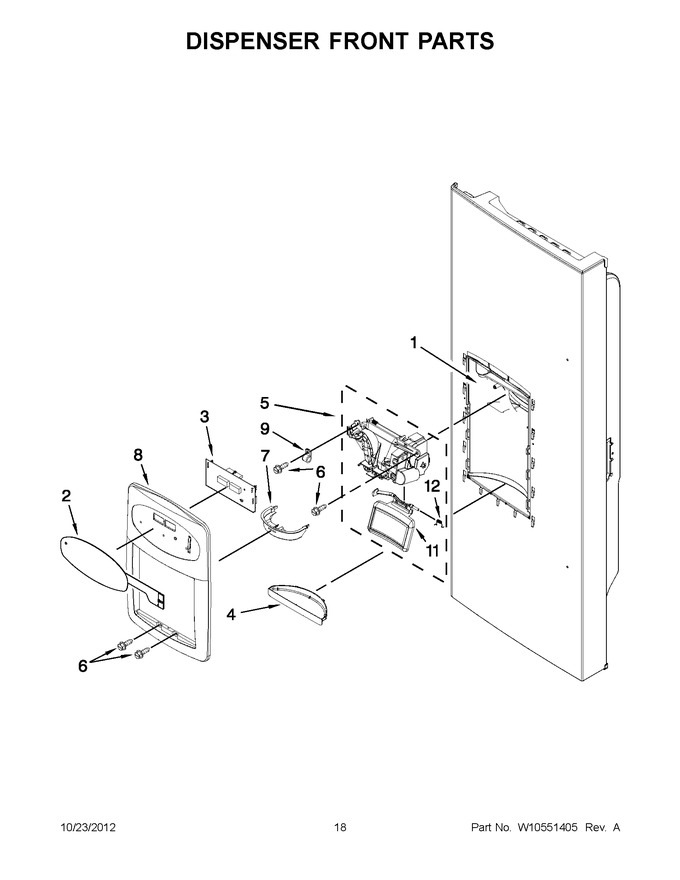

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10776982		Keyboard (white)   (Replaces: W10316103)				$ 305.60
2	W10776981		Keyboard (black)   (Replaces: W10316105)				$ 305.60
2	W10316107		Keyboard (biscuit/bisque)				$ 165.50
3	67006294		Board, L.v.   (Replaces: 12939601)				$ 243.03
4	W10445054		Sump, Dispenser (biscuit/bisque)		Appelez-nous	-
4	W10445057		Sump, Dispenser (white)				$ 64.38
4	W10445056		Sump, Dispenser (black)				$ 60.28
5	WP13005703W		Chute, Ext/yoke (includes Switch) (white)   (Replaces: 13005703W)				$ 290.79
5	WP13005703B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005703B)				$ 292.17
5	WP13005703W		Chute, Ext/yoke (includes Switch) (biscuit/bisque)   (Replaces: 13005703Q)				$ 290.79
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
7	67006295		Ring, Target   (Replaces: 12958301)				$ 50.01
8	W10142272		Facade, Dispenser (white)				$ 239.65
8	WPW10164982		Facade, Dispenser (black)   (Replaces: W10164982)				$ 211.00
8	W10164983		Facade, Dispenser (biscuit/bisque)				$ 94.83
9	M0108106		Clamp, Tube				$ 62.96
11	W10170831		Yoke And Pad Assembly				$ 75.42
12	WP12565502		Spring, Chute Door   (Replaces: 12565502)				$ 7.59

    View Diagram in Separate Window       Print Part List
