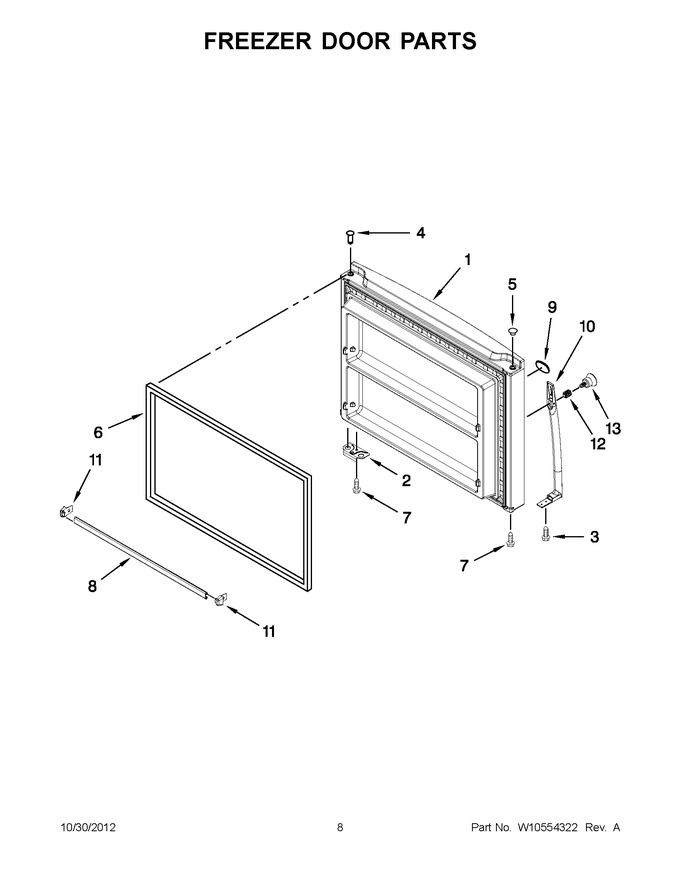

| 1 | LW10353326 | Freezer Door (includes Illus. 4 & 6) (sparkle) (Replaces: W10353326) |
|
$ 518.31 | |||||
| 1 | LW10299907 | Freezer Door (includes Illus. 4 & 6) (white) (Replaces: W10299907) |
|
$ 539.05 | |||||
| 2 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 12.71 | |||||
| 5 | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 5 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159327 | Door Gasket, Magnetic (beige) (Replaces: 2214966) |
|
Immediately | $ 164.58 | ||||
| 6 | W11624958 | Door Gasket, Magnetic (grey) (Replaces: W10279559) |
|
$ 320.92 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 8 | W10469910 | Trim, Door (Replaces: W10308873) |
|
$ 164.72 | |||||
| 9 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 10 | W11765172 | Handle (titanium Sparkle) (Replaces: W10498431) |
|
Immediately | $ 125.17 | ||||
| 10 | WPW10498429 | Handle (white) (Replaces: W10498429) |
|
$ 175.09 | |||||
| 11 | W10338485 | End Cap, Trim Left Hand |
|
$ 10.41 | |||||
| 11 | W10308871 | End Cap, Trim Right Hand |
|
$ 10.44 | |||||
| 12 | 690046 | Screw, Set |
|
- | |||||
| 13 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 |
