01 - Cabinet Parts

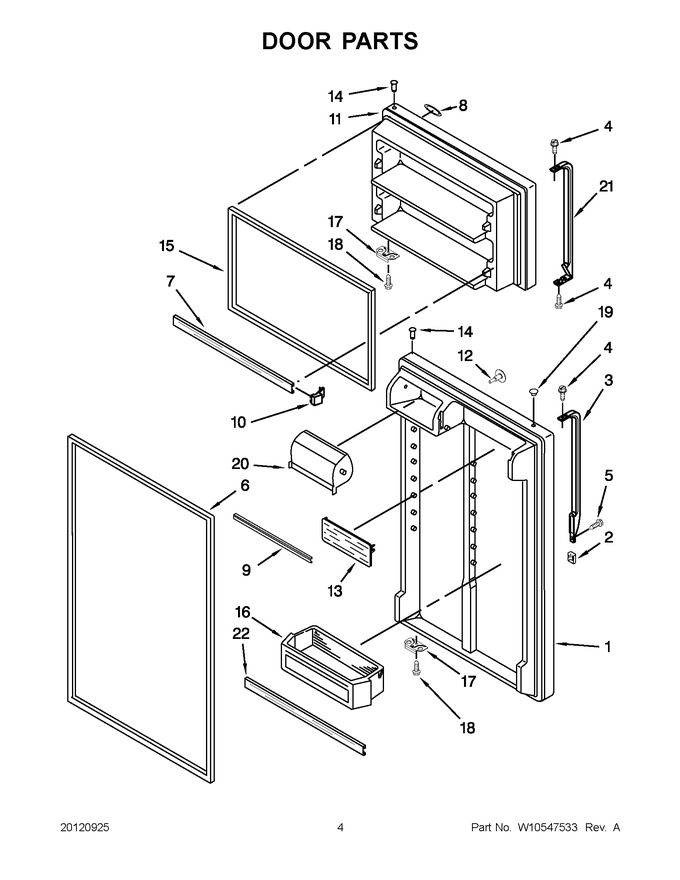

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10853404 | Refrigerator Door (includes Illus. 6) (stainless Steel) (Replaces: W10371936) |
|
- | |||||
| 1 | W11023679 | Refrigerator Door (includes Illus. 6) (white) (Replaces: 2183920) |
|
$ 682.52 | |||||
| 1 | W11023688 | Refrigerator Door (includes Illus. 6) (biscuit/bisque) (Replaces: 2205284) |
|
- | |||||
| 1 | W11023687 | Refrigerator Door (includes Illus. 6) (black) (Replaces: 2200714) |
|
$ 724.90 | |||||
| 2 | 2193353T | Handle, Trim (biscuit/bisque) |
|
- | |||||
| 2 | WP2193353W | Handle, Trim (white) (Replaces: 2193353W) |
|
$ 7.67 | |||||
| 2 | 2193353B | Handle, Trim (black) |
|
$ 5.85 | |||||
| 3 | 4388947 | Handle, Refrigerator (white) (Replaces: 2213112W) |
|
$ 184.02 | |||||
| 3 | 2213112T | Handle, Refrigerator (biscuit/bisque) |
|
- | |||||
| 3 | 4388950 | Handle, Refrigerator (black) (Replaces: 2213112B) |
|
$ 212.23 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.36 | |||||
| 6 | 2159061 | Door Gasket, Magnetic (beige) (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 6 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 7 | W10463315 | Trim-door |
|
- | |||||
| 8 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 58.63 | ||||
| 8 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 58.63 | ||||
| 9 | WP2201061 | Trim-door (Replaces: W10421476) |
|
$ 111.89 | |||||
| 10 | WP2195916K | Endcap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 11 | W11023679 | Freezer Door (includes Illus. 15) (white) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 11 | W10853404 | Freezer Door (includes Illus. 15) (stainless Steel) (Replaces: W10371935) |
|
- | |||||
| 11 | W11023687 | Freezer Door (includes Illus. 15) (black) (Replaces: 2200711) |
|
$ 724.90 | |||||
| 11 | W11023688 | Freezer Door (includes Illus. 15) (biscuit/bisque) (Replaces: 2204686) |
|
- | |||||
| 12 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 12 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 12 | WP2200936 | Hole Plug, Handle (biscuit/bisque) (Replaces: 2200936) |
|
$ 7.17 | |||||
| 13 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 57.94 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 15 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 15 | 2159060 | Door Gasket, Magnetic (beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 16 | WP2204812 | Bin, Door (Replaces: 2204812) |
|
$ 72.41 | |||||
| 17 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 19 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 19 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 19 | WP2212649 | Hole Plug (biscuit/bisque) (Replaces: 2212649) |
|
$ 7.19 | |||||
| 20 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 68.65 | |||||
| 21 | 2213111T | Handle, Freezer (biscuit/bisque) |
|
- | |||||
| 21 | 4388950 | Handle, Freezer (black) (Replaces: 2213111B) |
|
$ 212.23 | |||||
| 21 | 4388947 | Handle, Freezer (white) (Replaces: 2213111W) |
|
$ 184.02 | |||||
| 22 | WPW10421486 | Trim-door (Replaces: W10421486) |
|
$ 103.27 |
