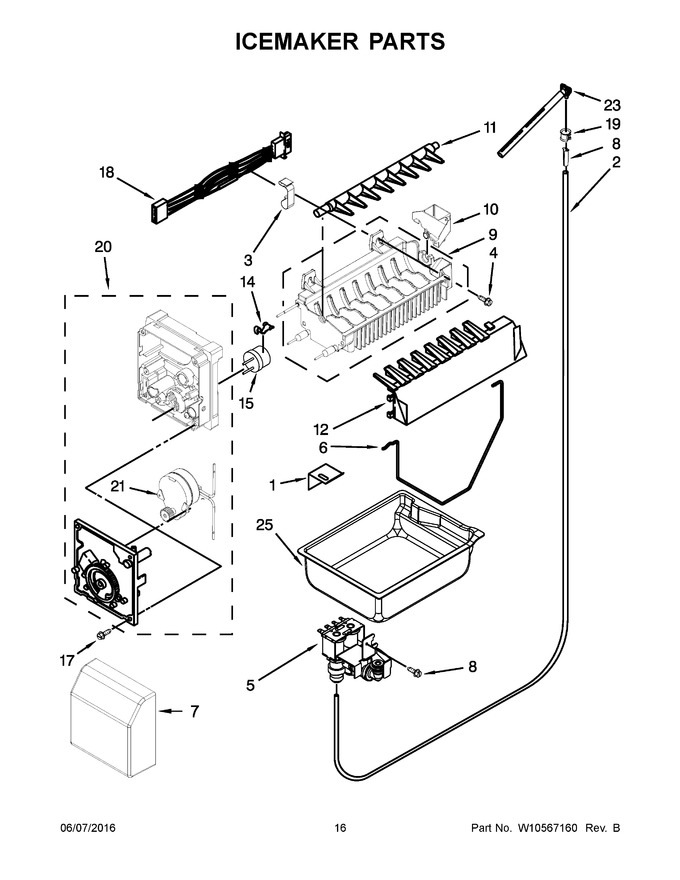

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10420084 | Bracket, Icemaker Mounting |
|
$ 70.07 | |||||
| 2 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 112.44 | |||||
| 3 | 10526702 | Clamp, Wire |
|
- | |||||
| 5 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 145.92 | ||||
| 6 | W11285509 | Arm, Shut Off (Replaces: W10202524) |
|
$ 88.83 | |||||
| 7 | W10153710 | Cover, Front |
|
$ 15.76 | |||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
$ 7.39 | |||||
| 9 | WPW10300025 | Assembly, Mold And Heater (Replaces: W10300025) |
|
Immediately | $ 181.73 | ||||
| 10 | W10410073 | Cup, Water Fill |
|
$ 75.66 | |||||
| 11 | W10318914 | Ejector |
|
$ 34.27 | |||||
| 12 | W10788834 | Stripper, Ice (Replaces: W10699925) |
|
$ 76.72 | |||||
| 14 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 15 | WP627985 | Thermostat (Replaces: W10290336) |
|
$ 103.18 | |||||
| 17 | W10001240 | Screw |
|
$ 8.30 | |||||
| 18 | W10886932 | Harness, Icemaker Wire (Replaces: W10793621) |
|
Immediately | $ 126.17 | ||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 20 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 21 | N/P | Motor (not Available, Order #20) |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 25 | W10120005 | Pan, Ice |
|
$ 190.46 | |||||
| 100 | W10889233 | Assembly, Icemaker (complete) (Replaces: W10795988) |
|
Immediately | $ 201.98 |
