SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts

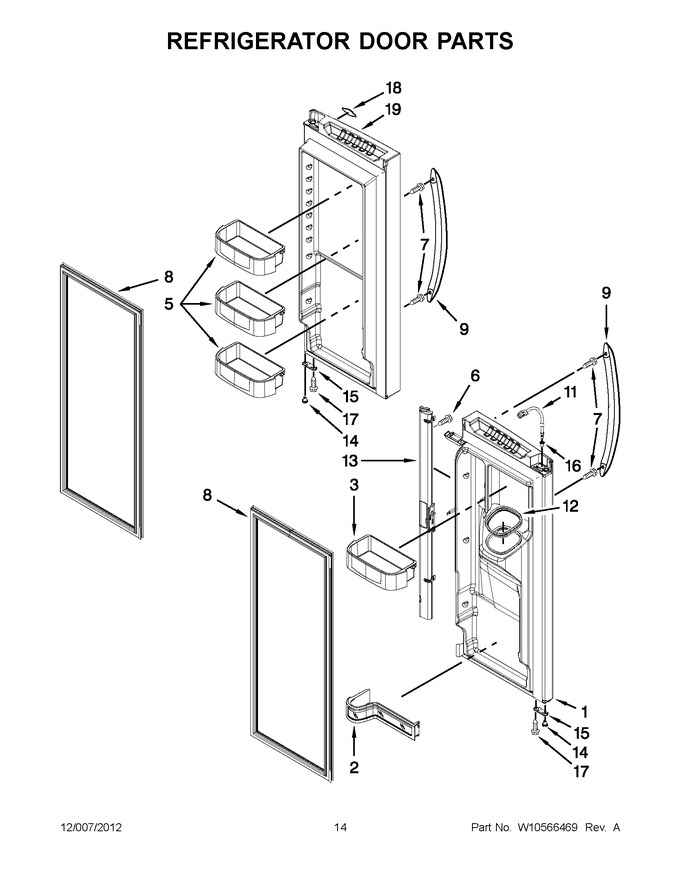

07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107318S		Door, Left (stainless)		Appelez-nous	-
2	W10355269		Bucket, Upper				$ 70.69
3	W11379148		Bucket, Small   (Replaces: W10355270)			Immediately	$ 148.13
5	W11706640		Bucket, Gallon   (Replaces: W10355264)				$ 67.60
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
7	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
8	W10830274		Gasket, Door (grey)   (Replaces: W10443273)			Immediately	$ 302.28
9	W10605389		Door Handle (stainless) (jfx2597aep3)   (Replaces: W10409333)				$ 282.26
9	W10509005		Door Handle (stainless) (jfx2597aem3)		Appelez-nous	-
11	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 109.75
12	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 29.48
13	WPW10311757		Mullion, Door (grey)   (Replaces: W10311757)				$ 127.03
14	WP12028505AP		Closure, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 55.31
15	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 13.91
16	12996601		Clip, Bushing				$ 10.05
17	WP98165		Screw   (Replaces: 12990521)				$ 7.71
18	WPW10420623		Nameplate (nameplate) (jfx2597aep3)   (Replaces: W10420623)				$ 78.19
18	WPW10214168		Nameplate (stainless) (jfx2597aem3)   (Replaces: W10214168)				$ 77.36
19	13107319SQ		Door, Right (stainless)   (Replaces: 13107319S)				$ 984.84

    View Diagram in Separate Window       Print Part List
