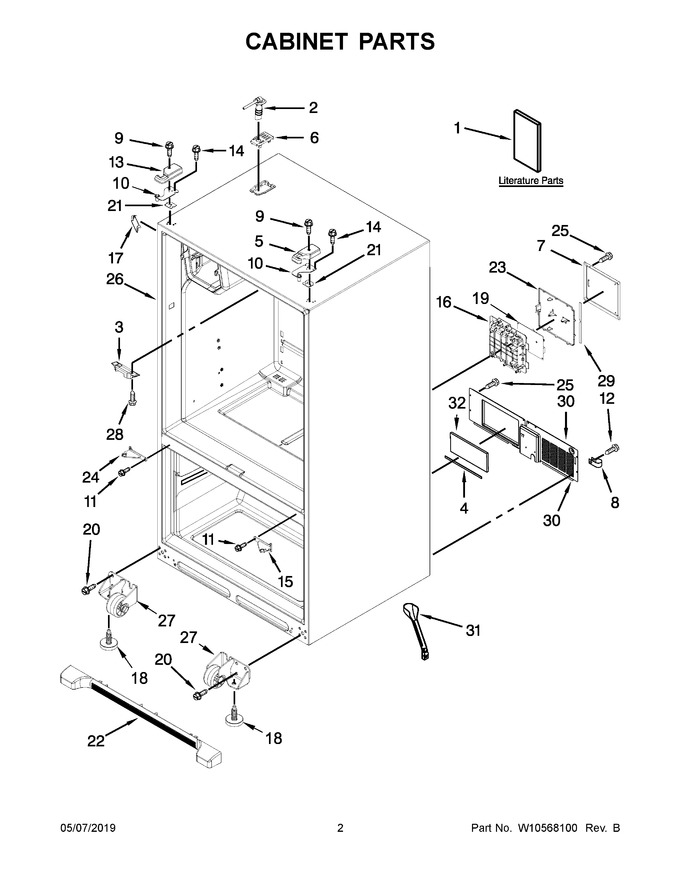

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10475392 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11551552 |
 |
Tube, Water (Replaces: 12961402) |
|
|
Immediately |
$ 18.17 |
|
|
| 3 |
WP67003405 |
 |
Plate, Pivot (Replaces: 12698403) |
|
|
Immediately |
$ 7.39 |
|
|
| 4 |
B5759655 |
|
Gasket |
|
|
|
$ 11.73 |
|
|
| 5 |
67005958 |
 |
Cover, Top Hinge (right) (white) (Replaces: 12962302W) |
|
|
|
$ 19.41 |
|
|
| 6 |
12981401W |
|
Cover, Fill Tube (white) |
|
|
|
$ 11.93 |
|
|
| 7 |
12961602 |
|
Cover, Control Box |
|
|
|
$ 104.57 |
|
|
| 8 |
W11456069 |
|
Clamp, Tube (Replaces: M0108107) |
|
|
Immediately |
$ 20.16 |
|
|
| 9 |
WP8281196 |
 |
Screw (Replaces: 12992602) |
|
|
Immediately |
$ 6.80 |
|
|
| 10 |
W11592374 |
 |
Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
|
Immediately |
$ 28.71 |
|
|
| 11 |
W11573362 |
|
Screw (Replaces: W10339086) |
|
|
|
$ 13.25 |
|
|
| 12 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 6.57 |
|
|
| 13 |
WPW10337634 |
 |
Cover, Top Hinge (left) (white) (Replaces: 12962301W) |
|
|
Immediately |
$ 21.19 |
|
|
| 14 |
WP489349 |
 |
Screw (Replaces: 12992403) |
|
|
Immediately |
$ 7.59 |
|
|
| 15 |
W10918117 |
|
Hinge, Center (right) (white) (Replaces: W10740144) |
|
|
|
$ 21.41 |
|
|
| 16 |
WP67006390 |
 |
Box, Control (Replaces: 12957601) |
|
|
|
$ 193.13 |
|
|
| 17 |
12587703W |
 |
Cover, Corner (white) |
|
|
|
$ 20.61 |
|
|
| 18 |
WPW10141622 |
 |
Brake, Roller (Replaces: W10141622) |
|
|
Immediately |
$ 7.42 |
|
|
| 19 |
WPW10312695 |
 |
Board, Hv Control (Replaces: W10312695) |
|
|
Immediately |
$ 221.74 |
|
|
| 20 |
67006564 |
 |
Screw (Replaces: 12991302) |
|
|
Immediately |
$ 7.34 |
|
|
| 21 |
12999501 |
 |
Shim, Top Hinge (left Hand) |
|
|
|
$ 89.58 |
|
|
| 22 |
WPW10534161 |
 |
Grille, Toe (white) (Replaces: W10534161) |
|
|
|
$ 132.38 |
|
|
| 23 |
W10296536 |
 |
Lid, Hv Control |
|
|
|
$ 89.42 |
|
|
| 24 |
W10918115 |
|
Hinge, Center (left) (white) (Replaces: W10740148) |
|
|
|
$ 20.60 |
|
|
| 25 |
W11686675 |
|
Screw (Replaces: 12990702) |
|
|
|
$ 12.84 |
|
|
| 26 |
N/P |
|
Cabinet (not A Servicable Part) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
W11820445 |
|
Assembly, Roller (right Hand) (Replaces: W10515762) |
|
|
Immediately |
$ 33.62 |
|
|
| 28 |
W10854958 |
|
Screw (Replaces: 12990302) |
|
|
|
$ 7.11 |
|
|
| 29 |
12957801 |
|
Gasket, Control Box |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W10211849 |
|
Cover, Machine Compartment Back |
|
|
|
$ 177.00 |
|
|
| 31 |
W10619951 |
 |
Extension, Drain Tube (Replaces: W10622099) |
|
|
Immediately |
$ 41.61 |
|
|
| 32 |
W11553819 |
 |
Insulation, Sound Deadening (Replaces: 2169104) |
|
|
Immediately |
$ 13.29 |
|
|
| 10A |
W11592375 |
 |
Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
|
|
$ 28.73 |
|
|
| 13A |
12962301Q |
|
Cover, Top Hinge (left) (biscuit/bisque) |
|
Appelez-nous
|
- |
|
|
|
| 17A |
12587703C |
|
Cover, Corner (biscuit) |
|
Appelez-nous
|
- |
|
|
|
| 1A |
W10329357 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W11112947 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 21A |
12999502 |
 |
Shim, Top Hinge (right Hand) |
|
|
|
$ 90.54 |
|
|
| 22A |
W10236197 |
|
Grille, Toe (biscuit/bisque) |
|
|
|
$ 44.57 |
|
|
| 27A |
W11820444 |
|
Assembly, Roller (left Hand) (Replaces: W10515763) |
|
|
Immediately |
$ 33.62 |
|
|
| 5A |
12962302Q |
|
Cover, Top Hinge (right) (biscuit/bisque) |
|
Appelez-nous
|
- |
|
|
|
