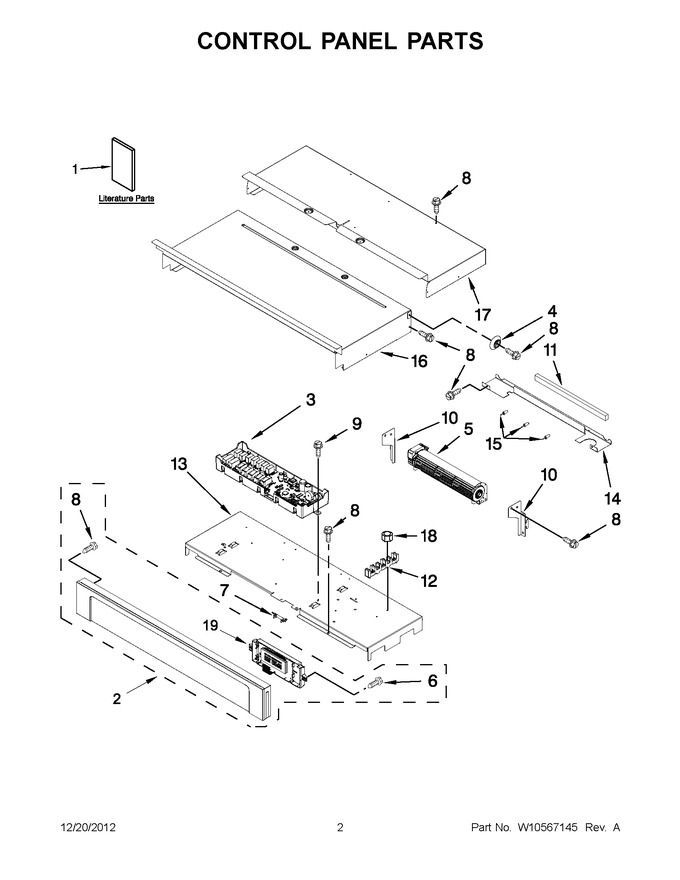

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10351242		Instructions, Installation (english)		Appelez-nous	-
1	W10075750		Instructions, Installer		Appelez-nous	-
1	W10354192		Use & Care Guide		Appelez-nous	-
1	W10507057		Tech Sheet		Appelez-nous	-
2	W10617339		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10540076)		Appelez-nous	-
2	W10540074		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	W10540075		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
3	W10803217		Board, Mrc2 Main   (Replaces: W10496290)				$ 357.24
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower (lower)				$ 208.35
5	WPW10260254		Blower (upper)   (Replaces: W10260254)			Immediately	$ 187.83
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 7.88
7	WPW10545291		Fuse, Thermal   (Replaces: W10545291)			Immediately	$ 31.95
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10283005		Tray, Electronic		Appelez-nous	-
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper (lower Model Only)				$ 19.91
16	W10318193		Chassis, Cover Top Front 27``				$ 122.47
17	W10318195		Chassis, Cover Top Back 27``				$ 99.94
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
19	W10286216		Board, Mrc2 Display		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
