View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

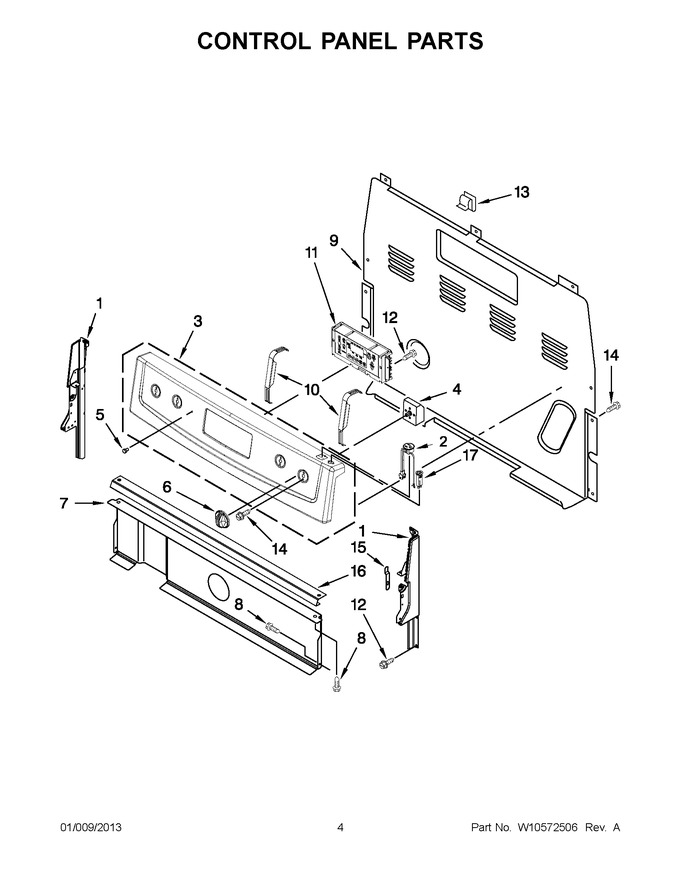

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 2 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 3 | W10558050 | Panel, Console (white) |
|
$ 58.93 | |||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | WP3149400 | Switch, Infinite (orange) (right Rear) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 5 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.91 | ||||
| 6 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 7 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 9 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 10 | W11230932 | Bracket, Mounting, Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 11 | WPW10557734 | Control, Range (white) (Replaces: W10557734) |
|
$ 269.91 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 15 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 17 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 61.96 |
