Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10175906 Wire, Shelf Special Order $ 79.30

2 2302884 Shelf, Fixed Special Order $ 284.76

3 W11318849 Basket, Freezer   (Replaces: 2259083) Special Order $ 163.94

4 WP2256271 Assembly, Basket Front   (Replaces: 2256271) Special Order $ 88.29

5 2259317 Slide, Basket (right Hand) Special Order $ 209.96

5 WP2259318 Slide, Basket (left Hand)   (Replaces: 2259318) In-Stock Immediately $ 285.62

6 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

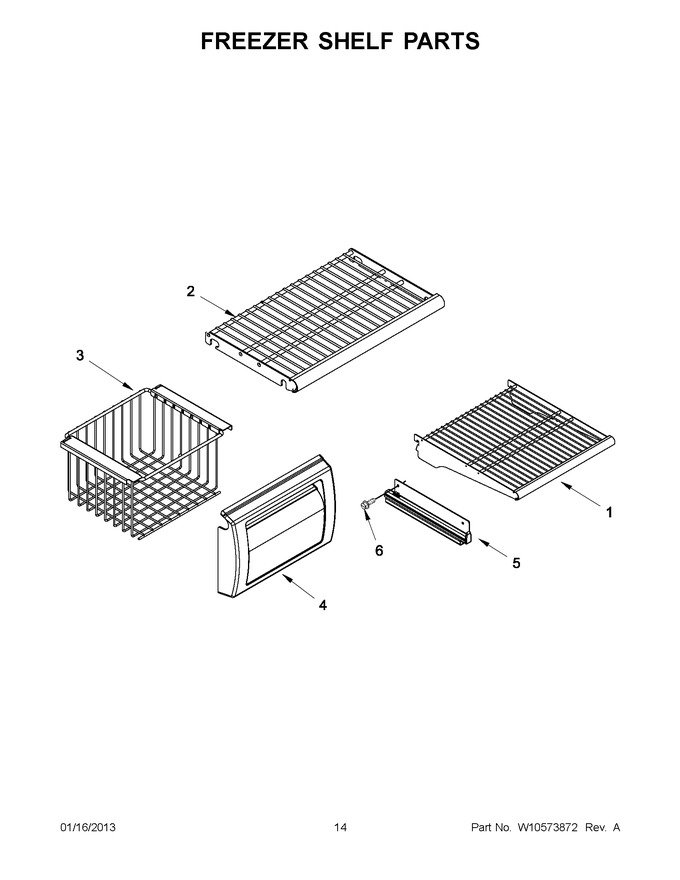

Diagram for JS48PPDUDB15
