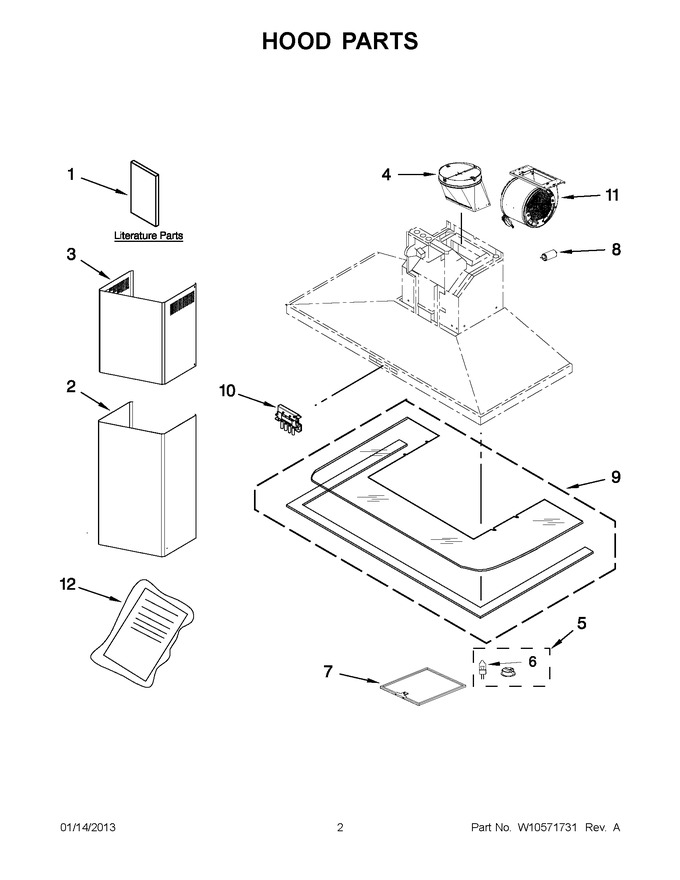

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10502583 | Use And Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Lower (Replaces: W10313840) |
|
$ 350.33 | |||||
| 3 | W11590865 | Chimney, Upper (Replaces: W10313839) |
|
$ 350.33 | |||||
| 4 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 125.53 | ||||
| 6 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 26.18 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 39.53 | ||||
| 8 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 9 | W10562736 | Assembly, Glasss And Trim With Badge |
|
- | |||||
| 10 | WPW10727063 | Switch, Push Button (Replaces: W10504432) |
|
$ 234.46 | |||||
| 11 | WPW10291577 | Fan Assembly (Replaces: W10291577) |
|
$ 485.51 | |||||
| 12 | W10562737 | Hardware, Installation |
|
- | |||||
| NI | W10412939 | Accessories, Charcoal Filter Kit (for Non-vented Installations Only) |
|
Immediately | $ 70.33 | ||||
| NI | W10294735 | Accessories, Chimney Extension Kit |
|
$ 824.95 | |||||
| NI | W10446915 | Accessories, 6`` Makeup Air Kit |
|
$ 316.52 |
