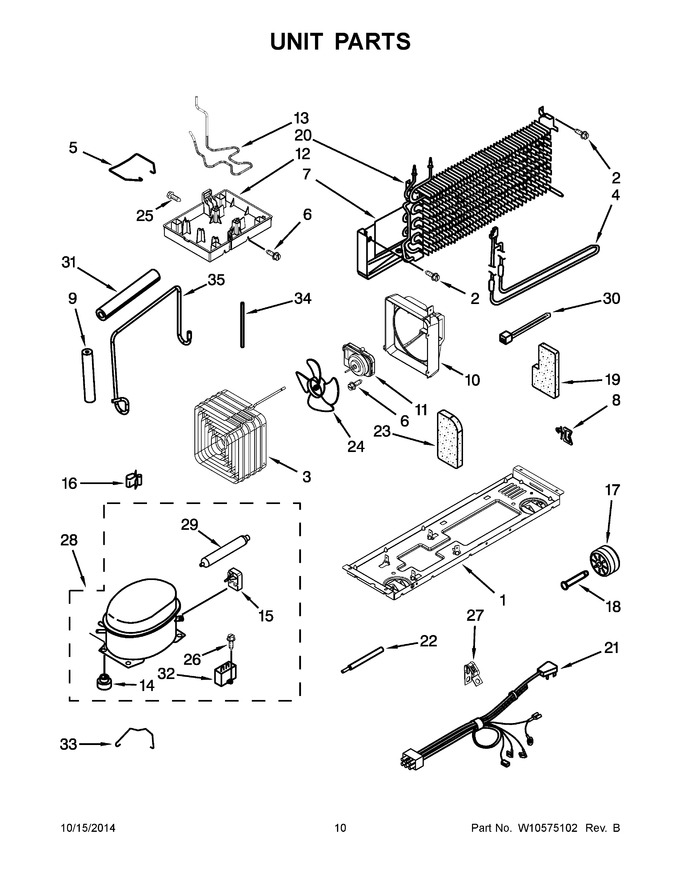

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Plate, Compressor Support (Replaces: W10222450) |
|
$ 132.10 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 3 | 2264597 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 7 | 2319224 | Shield, Heat |
|
$ 116.21 | |||||
| 8 | 2266467 | Clip, Harness |
|
- | |||||
| 9 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 10 | W10358308 | Fan, Scroll |
|
$ 136.12 | |||||
| 11 | WP2188874 | Motor, Condenser (Replaces: W10508362) |
|
Immediately | $ 111.76 | ||||
| 12 | WP2263928 | Tray, Evaporator (Replaces: 2263928) |
|
$ 134.12 | |||||
| 13 | W10336305 | Tube, Discharge |
|
- | |||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
$ 6.80 | |||||
| 15 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 80.29 | ||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator (Replaces: 2263920) |
|
Immediately | $ 299.90 | ||||
| 21 | WPW10151677 | Assembly, Unit Wire (Replaces: W10151677) |
|
$ 123.22 | |||||
| 22 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Blade, Fan |
|
Immediately | $ 98.99 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.11 | |||||
| 26 | 8533919 | Screw |
|
- | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 28 | WPW10463858 | Compressor (Replaces: W10405532) |
|
$ 575.51 | |||||
| 29 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 51.42 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 31 | 2264838 | Sleeve |
|
$ 83.05 | |||||
| 32 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 33 | 2263628 | Clip, Combination |
|
- | |||||
| 34 | 2264278 | Tube, Drain |
|
$ 71.79 | |||||
| 35 | W10209727 | Extension, Heat Tube |
|
$ 104.35 | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge 3.10 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access |
|
- |
