01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Door Parts
06 - Chassis Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

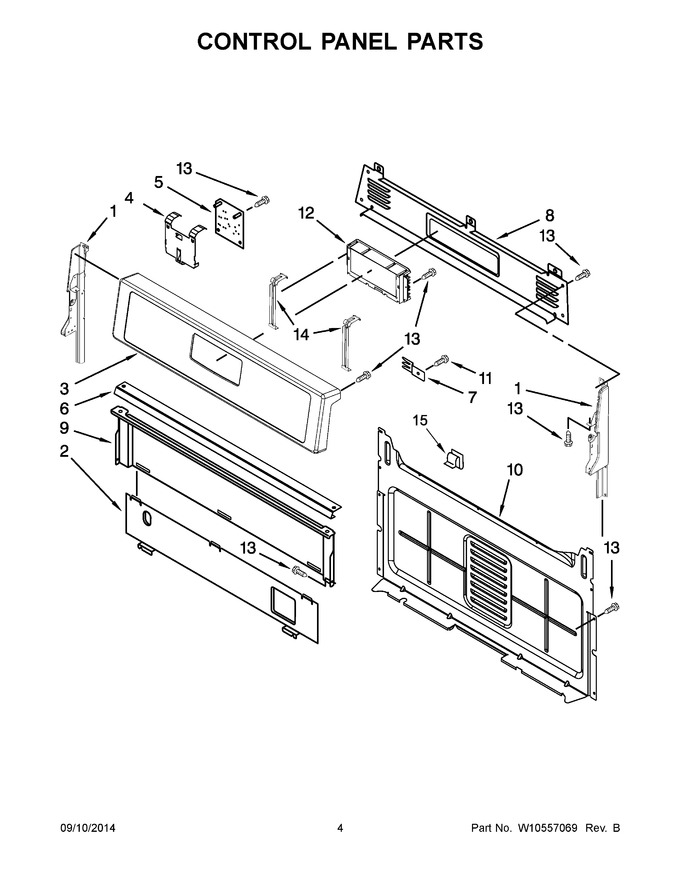

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap, Panel (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | 8053505 | Heat Shield (lower) |
|
$ 149.30 | |||||
| 3 | W11234436 | Panel, Control (white) (Replaces: W10370102) |
|
$ 310.78 | |||||
| 4 | W10516577 | Bracket, Mounting |
|
- | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 363.24 | ||||
| 6 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 7 | 8523412 | Bracket, Rear Cooktop |
|
$ 151.11 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 10 | W10184370 | Cover, Back |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 12 | WPW10348710 | Control, Range Lcc190 (white) (Replaces: W10348710) |
|
$ 259.70 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 15 | W10334923 | Clip, Wire |
|
- | |||||
| 12A | WPW10348656 | Control, Range Lcc190 (black) (Replaces: W10348709) |
|
$ 409.31 | |||||
| 12B | WPW10413072 | Control, Range Lcc190 (biscuit) (Replaces: W10413072) |
|
$ 384.32 | |||||
| 12C | WPW10424890 | Control, Range Lcc190 (stainless) (Replaces: W10349741) |
|
$ 403.70 | |||||
| 1A | W11219664 | Endcap, Panel (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1B | W11230611 | Endcap, Panel (biscuit (left Hand)) (Replaces: W10184435) |
|
- | |||||
| 1C | W11219370 | Endcap, Panel (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1D | W11219665 | Endcap, Panel (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 1E | W11230612 | Endcap, Panel (biscuit (right Hand)) (Replaces: W10184436) |
|
- | |||||
| 3A | W11234434 | Panel, Control (black) (Replaces: W10370100) |
|
$ 310.78 | |||||
| 3B | W11234449 | Panel, Control (biscuit) (Replaces: W10370183) |
|
- | |||||
| 3C | W11234435 | Panel, Control (universal Silver) (Replaces: W10370101) |
|
$ 310.99 | |||||
| 3D | W10339408 | Panel, Control (stainless) |
|
$ 122.16 |
