01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts

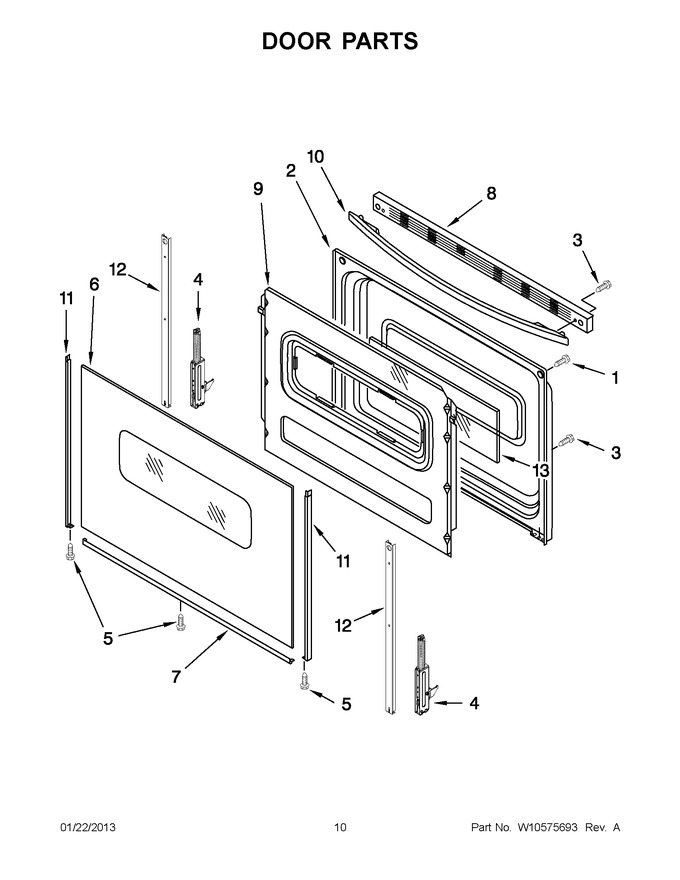

05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 2 | 9761340 | Liner-door |
|
$ 325.01 | |||||
| 3 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 4 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 90.51 | ||||
| 4 | WPW10299227 | Hinge, Passive (Replaces: W10299227) |
|
Immediately | $ 66.85 | ||||
| 5 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 6 | WP9762476 | Glass, Outer (Replaces: 9762476) |
|
$ 299.39 | |||||
| 7 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 8 | W10817433 | Trim, Door Top (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 9 | 9761500 | Retainer, Insulation |
|
$ 293.06 | |||||
| 10 | W10817434 | Handle, Oven Door (white) (Replaces: W10323588) |
|
Immediately | $ 211.34 | ||||
| 11 | WP8523172 | Trim, Door (white, Left Hand) (Replaces: 8523172) |
|
Immediately | $ 66.09 | ||||
| 11 | WP8523166 | Trim, Door (white, Right Hand) (Replaces: 8523166) |
|
Immediately | $ 79.61 | ||||
| 12 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 13 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 145.91 |
