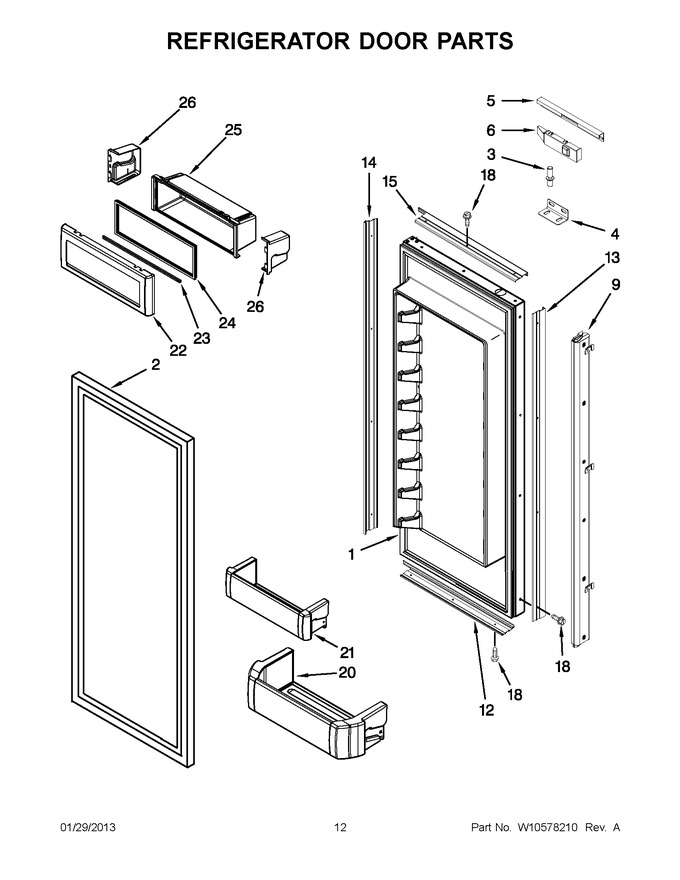

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138419		Door, Refrigerator (includes Item 2) (right Hand)		Appelez-nous	-
1	W10138417		Door, Refrigerator (includes Item 2) (left Hand)		Appelez-nous	-
2	8201809		Gasket, Door   (Replaces: 2268265)			Immediately	$ 286.71
3	W10234194		Pin-door, Top				$ 15.89
4	W10199955		Bracket Panel Mounting				$ 84.49
5	W10202510		Cover-door, Top (right Hand)				$ 99.02
5	W10202511		Cover-door, Top (left Hand)				$ 103.27
6	W10197748		Insert-door, Arm (top)				$ 16.95
6	W10197766		Insert-door, Arm (bottom)				$ 15.53
9	W10188592		Door, Mullion				$ 238.65
12	W10202473		Trim-door, Bottom (right Hand)		Appelez-nous	-
12	WPW10202474		Trim-door, Bottom (left Hand)   (Replaces: W10202474)				$ 100.75
13	W10202478		Trim-door, Side (handle Side) (right Hand)				$ 115.91
13	WPW10202480		Trim-door, Side (handle Side) (left Hand)   (Replaces: W10202480)				$ 159.87
14	W10202476		Trim-door, Side (hinge Side)		Appelez-nous	-
15	W10202471		Trim-door, Top (right Hand)				$ 150.00
15	WPW10202472		Trim-door, Top (left Hand)   (Replaces: W10202472)				$ 188.22
18	W10825422		Screw   (Replaces: 8281251)				$ 10.22
20	W10323746		Shelf, Door (gallon)				$ 97.42
21	W10323598		Bin, Door				$ 94.31
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 68.23
23	2222795		Rail, Utility Lid				$ 75.70
24	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 192.96
25	WPW10323035		Bin, Utility Center   (Replaces: W10323035)				$ 76.44
26	WPW10323172		End Cap, Utility Bin (right Hand)   (Replaces: W10323172)				$ 7.74
26	WPW10323173		End Cap, Utility Bin (left Hand)   (Replaces: W10323173)				$ 7.74
