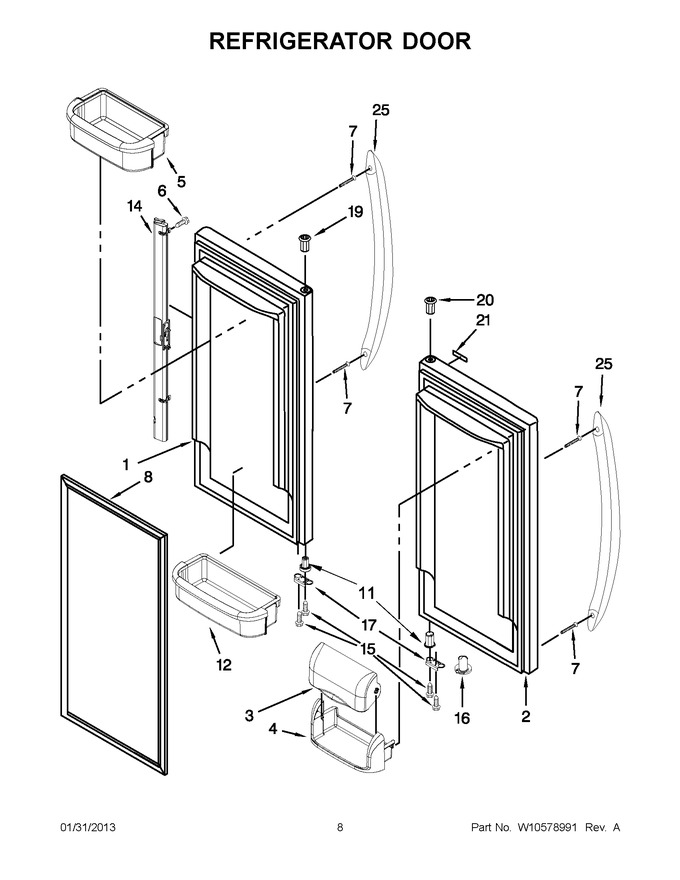

04 - Refrigerator Door


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door


08 - Ice Maker


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107780S		Door, Left (stainless)		Appelez-nous	-
2	13107764S		Door, (right Stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	67004040		Bucket, Medium   (Replaces: 12801902)				$ 86.39
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
7	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
8	W11368721		Black   (Replaces: W10435968)			Immediately	$ 194.02
11	WP67002731		Bushing, Door   (Replaces: 12028601B)			Immediately	$ 7.42
12	12840001		Bucket, Gallon		Appelez-nous	-
14	WP12722803B		Mullion, Door (black)   (Replaces: 12732501B)				$ 231.87
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)			Immediately	$ 81.29
17	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 13.28
19	12395501B		Bushing, Door (upper Left) (black)		Appelez-nous	-
20	67004978		Bushing, Door Upper Right (black)   (Replaces: 10961006B)				$ 19.89
21	WPW10170766		Nameplate. Maytag   (Replaces: W10170766)			Immediately	$ 63.45
25	W10291144N		Handle, Door (stainless)		Appelez-nous	-
