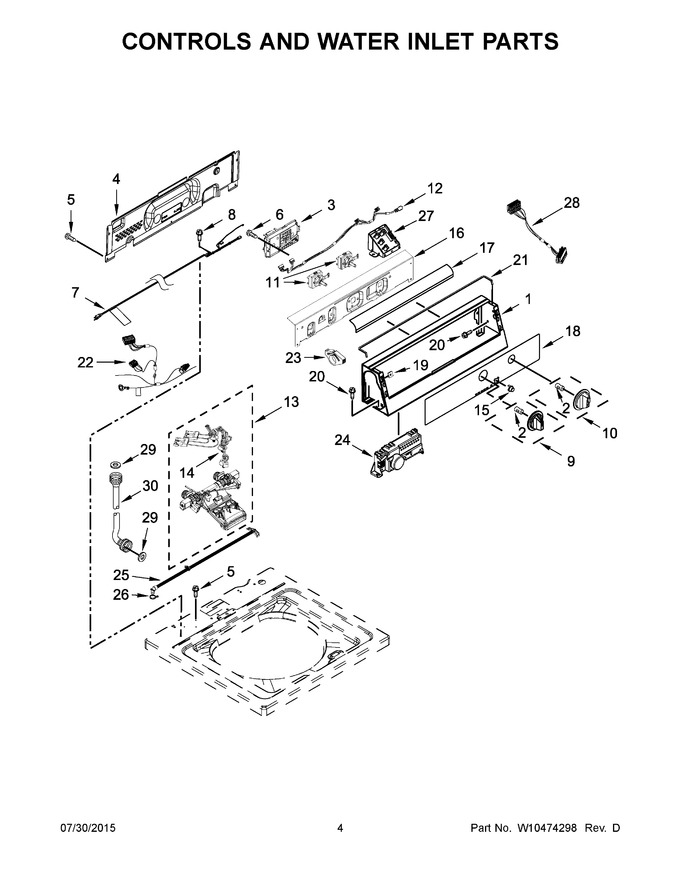

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124005 | Console (Replaces: W10461095) |
|
$ 214.58 | |||||
| 2 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 3 | W10860464 | Control Unit Assembly, Machine & Motor (Replaces: W10571743) |
|
Immediately | $ 272.84 | ||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 7 | W10482500 | Cord, Power |
|
$ 124.59 | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 9 | W11103226 | Assembly, Timer Knob (gray) (Replaces: W10133504) |
|
$ 64.13 | |||||
| 10 | W11199426 | Knob & Bumper Assembly (gray) (Replaces: W10461097) |
|
$ 8.73 | |||||
| 11 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 12 | W10291184 | Harness, Upper E-star |
|
$ 147.71 | |||||
| 13 | WPW10486031 | Inlet Assembly, Water (Replaces: W10486031) |
|
Immediately | $ 174.74 | ||||
| 14 | W10472990 | Harness, Valve |
|
$ 145.71 | |||||
| 15 | WPW10461117 | Push Button, Start (Replaces: W10461117) |
|
$ 65.12 | |||||
| 16 | W10461066 | Bracket, Back |
|
- | |||||
| 17 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 18 | W10461102 | Fascia |
|
- | |||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 20 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 21 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 35.74 | |||||
| 22 | W10480947 | Harness, Led |
|
- | |||||
| 23 | WPW10663966 | Clamp, Hose (Replaces: W10348582) |
|
$ 201.83 | |||||
| 24 | WPW10482833 | Module, Electronic Release (Replaces: W10482833) |
|
$ 175.00 | |||||
| 25 | WPW10461189 | Assembly, Hose (Replaces: W10461189) |
|
$ 30.32 | |||||
| 26 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.94 | ||||
| 27 | WPW10491734 | Interface, Coin Slide (Replaces: W10491734) |
|
Immediately | $ 85.51 | ||||
| 28 | W11296297 | Jumper, Coin Slide Interface (Replaces: W10514456) |
|
$ 8.33 | |||||
| 29 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 30 | W10458855 | Hose, Water Inlet (hot) |
|
- | |||||
| 30A | W10458856 | Hose, Water Inlet (cold) |
|
- |
