SELECT A DIAGRAM

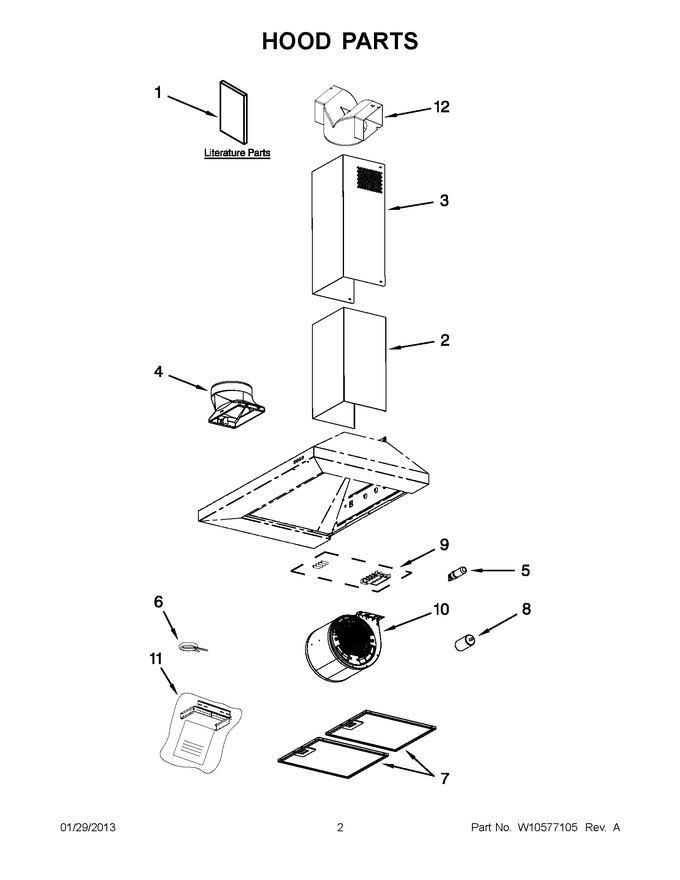

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526057 | Use And Care Guide |
|
- | |||||
| 2 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 3 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 4 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8190806 | Bulb, Light 40 Watts (Replaces: 8190806) |
|
$ 70.76 | |||||
| 6 | W10427011 | Filter, Noise |
|
- | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 39.53 | ||||
| 8 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 9 | WPW10350884 | Switch, Push Button (Replaces: W10350884) |
|
$ 310.38 | |||||
| 10 | WPW10427013 | Fan Assembly (Replaces: W10427013) |
|
$ 559.12 | |||||
| 11 | W10576679 | Hardware, Installation |
|
- | |||||
| 12 | W10427014 | Duct, Air Diverter |
|
$ 99.74 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11430940 | Accessories, Recirculation Kit (for Non-vented Installations Only) (Replaces: W10349327) |
|
Immediately | $ 137.92 | ||||
| NI | W10412939 | Accessories, Charcoal Filter Kit (for Non-vented Installations Only) |
|
Immediately | $ 70.33 | ||||
| NI | W10337357 | Accessories, Chimney Extension Kit |
|
$ 405.95 | |||||
| NI | W10446915 | Accessories, 6`` Makeup Air Kit |
|
$ 316.52 |
