SELECT A DIAGRAM

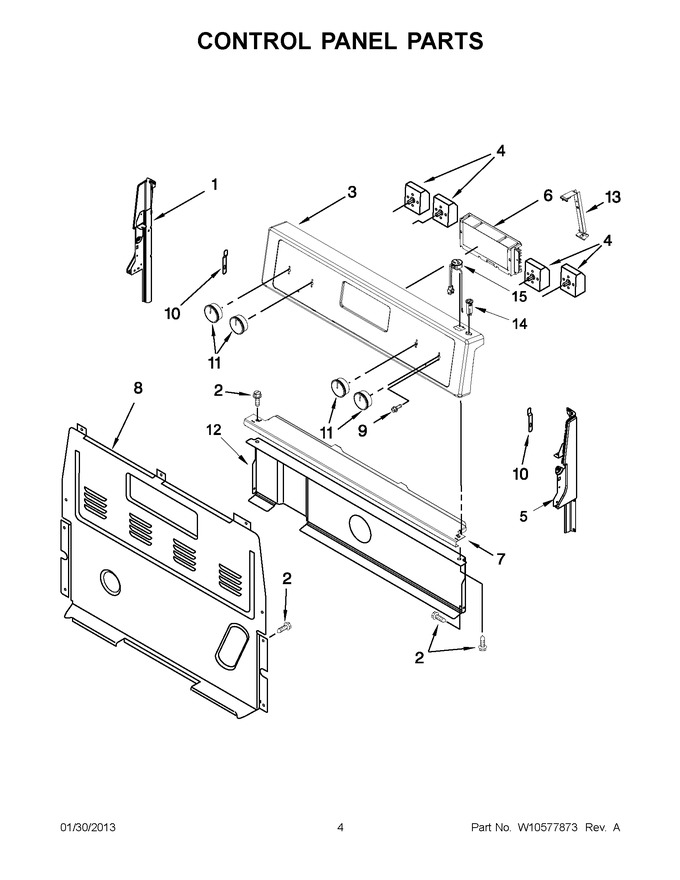

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer & Broiler Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		White (left Hand)   (Replaces: W10184433)				$ 38.21
1	W11219664		Black (left Hand)   (Replaces: W10184437)			Immediately	$ 138.45
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
3	W10333938		Panel, Console (black Stainless)				$ 51.36
3	W10333939		Panel, Console (white)				$ 69.01
4	WP3149400		Switch, Infinite (orange) (left Front, Right Rear)   (Replaces: 3148954)			Immediately	$ 81.46
4	WP3148952		Switch, Infinite (yellow) (right Front, Left Rear)   (Replaces: 3148952)			Immediately	$ 62.56
5	W11219370		White (right Hand)   (Replaces: W10184434)				$ 54.75
5	W11219665		Black (right Hand)   (Replaces: W10184438)			Immediately	$ 40.65
6	W11122536		Control, Electric (lcc 190) (stainless)   (Replaces: W10424884)			Immediately	$ 452.69
6	W10803948		Control, Electric (lcc 190) (black)   (Replaces: W10349612)				$ 467.91
6	W10803948		Control, Electric (lcc 190) (white)   (Replaces: W10349613)				$ 467.91
7	W10525121		Bracket, Console Mounting				$ 88.97
8	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	3196200		Clip, Spring				$ 9.41
11	WPW10490038		Knob (black)   (Replaces: W10490038)				$ 19.39
11	WPW10490037		Knob (white)   (Replaces: W10490037)			Immediately	$ 6.80
12	W10134247		Shield, Heat			Immediately	$ 322.94
13	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 76.33
14	W10861164		Receptacle (black)   (Replaces: W10203475)			Immediately	$ 16.62
14	W10849725		Receptacle (white)   (Replaces: W10203476)			Immediately	$ 100.00
15	WP9757602		Circuit Breaker (black)   (Replaces: 9757602)			Immediately	$ 54.82
15	WP9757601		Circuit Breaker (white)   (Replaces: 9757601)			Immediately	$ 59.00

    View Diagram in Separate Window       Print Part List
