SELECT A DIAGRAM

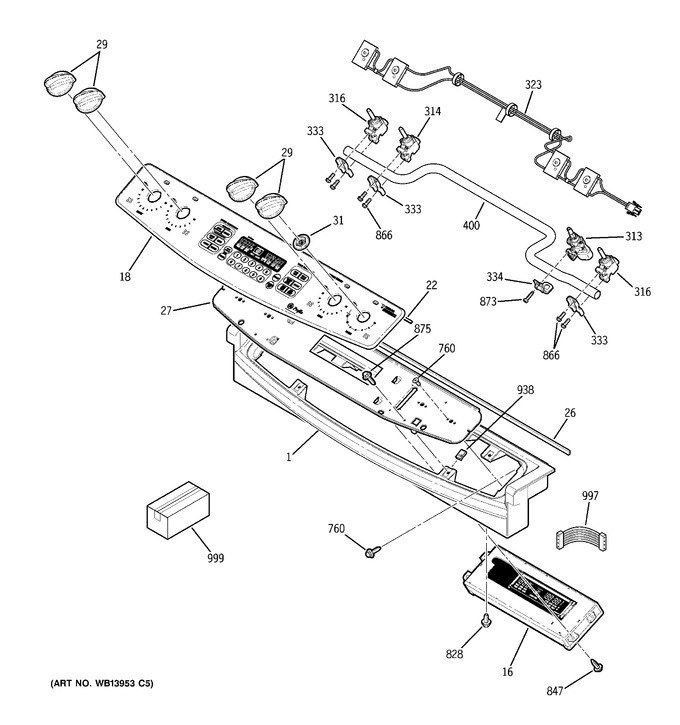

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T11009		Panel Control Asm (bk)		Appelez-nous	-
1	WB36T11011		Panel Control Asm (wh)		Appelez-nous	-
16	WB27T11152		Control Ovn Erc		Appelez-nous	-
18	WB27T11208		Glass Touch Asm (bk)		Appelez-nous	-
18	WB27T11209		Glass Touch Asm (wh)		Appelez-nous	-
22	WB02X10744		Gasket Faceplate		Appelez-nous	-
26	WG02F05540		Control Panel Gasket   (Replaces: WB02X10742)				$ 42.97
27	WB36T10661		Insert Pnl Cntl		Appelez-nous	-
29	WB03T10195		Knob Gas Vlv (prf)		Appelez-nous	-
29	WG02L02167		Knob Gas Vlv (prf)   (Replaces: WB03T10198)				$ 17.01
31	WB02T10183		Retainer Glass (wht)		Appelez-nous	-
31	WB02T10184		Retainer Glass (blk)		Appelez-nous	-
313	WB19T10070		Valve Gas Rf		Appelez-nous	-
314	WB19T10021		Valve Gas Lf		Appelez-nous	-
316	WB19T10053		Valve Gas Lr/rr		Appelez-nous	-
323	WG02F05552		Harness Switch   (Replaces: WB18T10389)			Immediately	$ 102.19
333	WB6X93		Valve Clamp		Appelez-nous	-
334	WB02T10261		Clamp		Appelez-nous	-
400	WB28T10201		Manifold Pipe		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
828	WG02A00487		Scr 8-18x.450 Ab Flt20 S   (Replaces: WB01T10110)				$ 4.78
847	WB1X1118		Screw-nickel		Appelez-nous	-
866	WB1X1428		Screw		Appelez-nous	-
873	WB01T10091		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
938	WB1K5209		Clip		Appelez-nous	-
997	WB18T10386		Harness Wire Glass Touch		Appelez-nous	-
999	49-80526		Manual Use & Care		Appelez-nous	-
999	31-10641		Instructions Install		Appelez-nous	-
999	31-10643		Instruction Lp		Appelez-nous	-
999	31-10780		Pm Instructions Install		Appelez-nous	-
999	31-14855		Manual Mini & Wd Asm		Appelez-nous	-
999	WB28T10239		Kit Butane Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
