1 - Control Panel

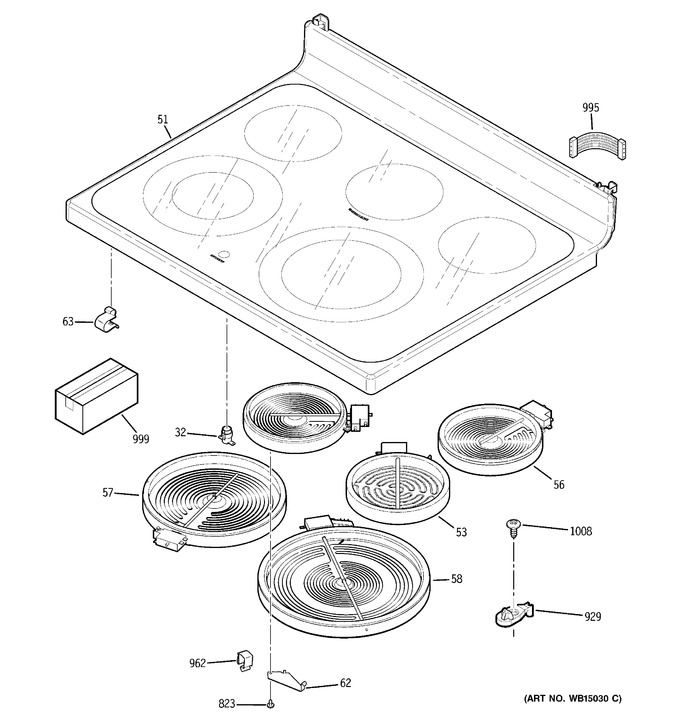

2 - Cooktop
3 - Upper Oven
4 - Lower Oven
5 - Upper Door
6 - Lower Door
7 - Door Lock
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WG02F04788 | Light Indicator Maintop (Replaces: WB27T10668) |
|
Immediately | $ 14.29 | ||||
| 51 | WB62T10795 | Rangetop Glass Asm |
|
- | |||||
| 53 | WS01F01171 | Element Radiant 6 Warmer (Replaces: WB30T10124) |
|
Immediately | $ 54.23 | ||||
| 56 | WG02F04329 | Element Radiant 6 In (Replaces: WB30T10129) |
|
Immediately | $ 96.47 | ||||
| 57 | WS01F01177 | Element Radiant 9 Dual (Replaces: WB30T10133) |
|
Immediately | $ 103.24 | ||||
| 58 | WG02F02055 | Element Haliant 12 Trpl (Replaces: WB30T10126) |
|
Immediately | $ 189.77 | ||||
| 62 | WB02T10464 | Bracket Radiant Element |
|
- | |||||
| 63 | WS01A03252 | Spring Radiant Element (Replaces: WB09T10013) |
|
Immediately | $ 4.07 | ||||
| 823 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02T10177 | Clip Cable |
|
- | |||||
| 995 | WB18T10483 | Harness Wire Ui Com |
|
- | |||||
| 995 | WB18T10535 | Harness Wire Maintop |
|
- | |||||
| 999 | WB02X11121 | Cleaner Glass |
|
- | |||||
| 999 | 31-10818 | Pm Instructions Install |
|
- | |||||
| 999 | 31-14999 | Pm Manual Mini & Wd Asm |
|
- | |||||
| 999 | 49-80639 | Pm Owners Manual |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
