01 - Control Panel Parts
02 - Upper Oven Parts

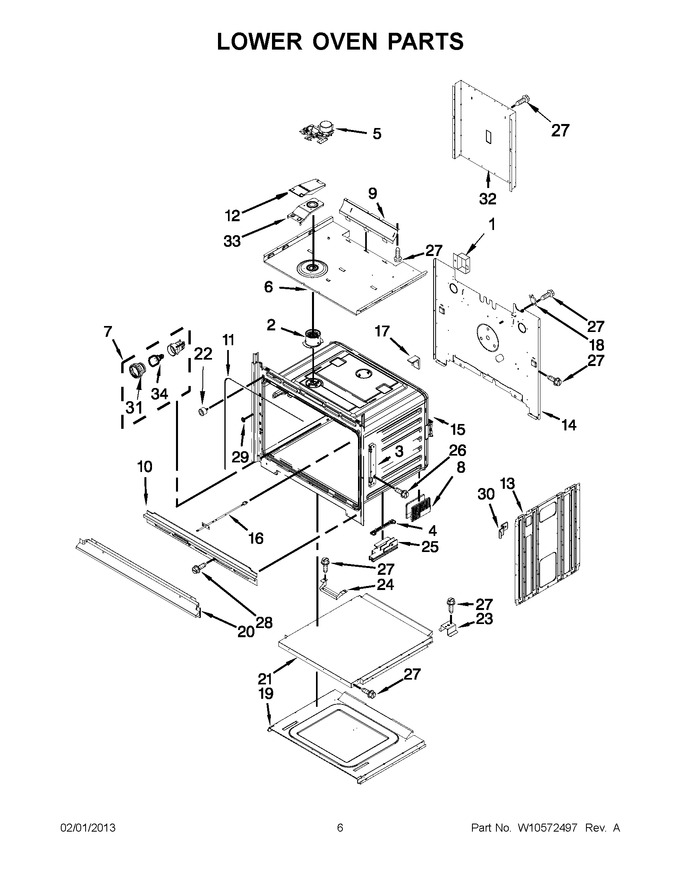

03 - Lower Oven Parts
04 - Upper Oven Door
05 - Lower Oven Door
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11819303 | Connector Cover (Replaces: 8285593) |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 22.99 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10282975) |
|
Immediately | $ 51.74 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 24.08 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 275.81 | ||||
| 6 | W10282981 | Chassis, Top |
|
- | |||||
| 7 | WPW10734063 | Light, Indicator (Replaces: W10260262) |
|
$ 80.15 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 30.16 | |||||
| 9 | W10351258 | Bracket, Blower Deflector |
|
- | |||||
| 10 | W10283041 | Vent, Center 27`` |
|
Immediately | $ 140.25 | ||||
| 11 | W10856596 | Gasket (Replaces: W10282961) |
|
Immediately | $ 149.08 | ||||
| 12 | W10616810 | Exhaust, Vent Cover (Replaces: W10282985) |
|
$ 62.96 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10282991 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 133.43 | ||||
| 17 | WPW10392683 | Bumper, Rail (Replaces: W10392683) |
|
$ 9.11 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 121.07 | ||||
| 19 | W10282901 | Base, Chassis |
|
$ 177.43 | |||||
| 20 | WPW10327375 | Assembly, Bottom Vent (black) (Replaces: W10327375) |
|
$ 392.39 | |||||
| 20 | WPW10351280 | Assembly, Bottom Vent (stainless) (Replaces: W10351280) |
|
$ 237.74 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 198.05 | |||||
| 22 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 9.91 | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Chassis, Bottom Duct Spacer |
|
$ 58.73 | |||||
| 25 | W10471952 | Feet, Front (foot, Front Left) |
|
- | |||||
| 25 | W10848812 | Feet, Front (foot, Front Right) (Replaces: W10471956) |
|
$ 29.44 | |||||
| 26 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 8.30 | |||||
| 27 | 7101P426- | Screw |
|
- | |||||
| 28 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 7.47 | |||||
| 29 | W10759525 | Grommet, Front Frame (Replaces: W10283016) |
|
$ 7.39 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 13.52 | |||||
| 31 | WPW10412722 | Lens, Light (Replaces: W10412722) |
|
Immediately | $ 17.69 | ||||
| 32 | W10542857 | Duct, Chassis Back |
|
$ 105.99 | |||||
| 33 | W10616809 | Base, Exhaust Vent (Replaces: W10282984) |
|
$ 29.02 | |||||
| 34 | WPW10412711 | Bulb, Light (Replaces: W10412711) |
|
Immediately | $ 24.31 | ||||
| NI | W11688333 | Insulation, Back (Replaces: W10282945) |
|
- | |||||
| NI | W10520716 | Insulation, Wrap |
|
- |
