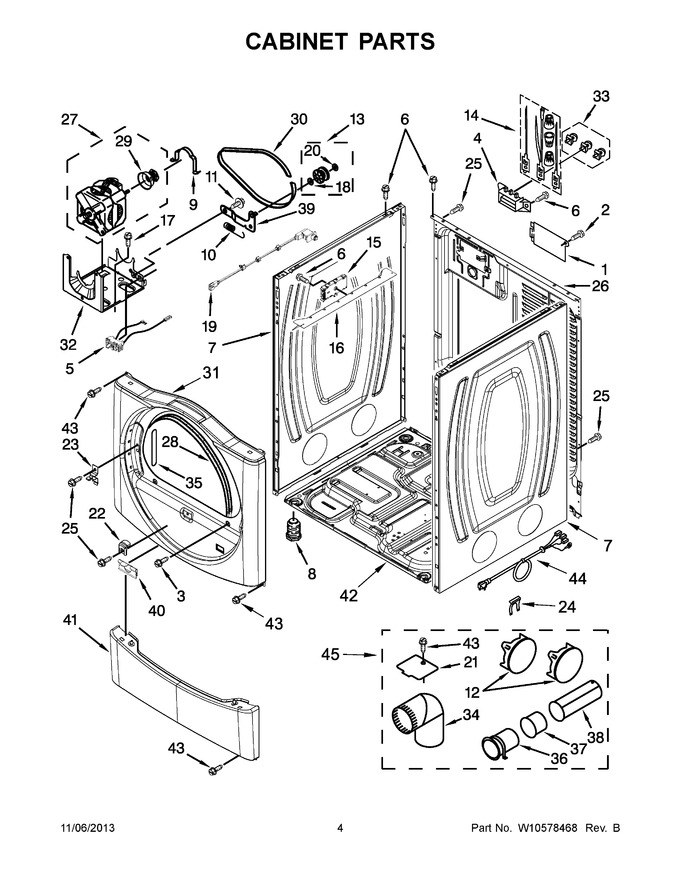

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 121.29 | |||||
| 2 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.38 | |||||
| 3 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | W10847984 | Switch, Broken Belt (Replaces: W10411936) |
|
Immediately | $ 24.21 | ||||
| 6 | WP90767 | Screw (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 7 | W10542715 | Panel, Side (silver) |
|
$ 286.19 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10131132 | Plug, Multivent (midnight Grey) (Replaces: W10331132) |
|
$ 68.23 | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 15 | WPW10450081 | Board, Control Ccu (Replaces: W10450081) |
|
Immediately | $ 314.46 | ||||
| 16 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 161.72 | |||||
| 17 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 18 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 19 | WPW10350910 | Assembly, Door Switch (Replaces: W10350910) |
|
Immediately | $ 78.85 | ||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 21 | WPW10354249 | Plate, Cover (Replaces: 8066115) |
|
$ 8.47 | |||||
| 22 | 8580015 | Ramp, Door |
|
$ 79.42 | |||||
| 23 | WP8565122 | Strike, Door (Replaces: 8565122) |
|
Immediately | $ 7.79 | ||||
| 24 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 25 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 26 | 8565059 | Panel, Rear |
|
$ 244.90 | |||||
| 27 | 279787 | Assembly, Motor 60 Hz. (Replaces: W10317045) |
|
Immediately | $ 222.14 | ||||
| 28 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 29 | W10837625 | Pulley, Motor (Replaces: W10402907) |
|
Immediately | $ 11.49 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 94.79 | ||||
| 31 | W10551279 | Panel, Front (silver) |
|
$ 118.37 | |||||
| 32 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 34 | WPW10416072 | Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 35 | WPW10085230 | Silver (Replaces: W10085230) |
|
$ 20.66 | |||||
| 36 | WP8563747 | Pipe, Exhaust (medium) (Replaces: 8563747) |
|
$ 86.36 | |||||
| 37 | WPW10331278 | Pipe, Exhaust (short) (Replaces: 8563750) |
|
$ 74.61 | |||||
| 38 | WP8563749 | Pipe, Exhaust (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 39 | W10837240 | Assembly, Idler (includes Item 13) (Replaces: W10547287) |
|
Immediately | $ 32.20 | ||||
| 40 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 19.95 | |||||
| 41 | W10251210 | Panel, Toe (silver) |
|
$ 236.19 | |||||
| 42 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 328.82 | |||||
| 43 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 44 | W11095079 | Cord, Power (Replaces: 8579325) |
|
Immediately | $ 124.42 | ||||
| 45 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent (Replaces: W10186596) |
|
Immediately | $ 76.75 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 |
