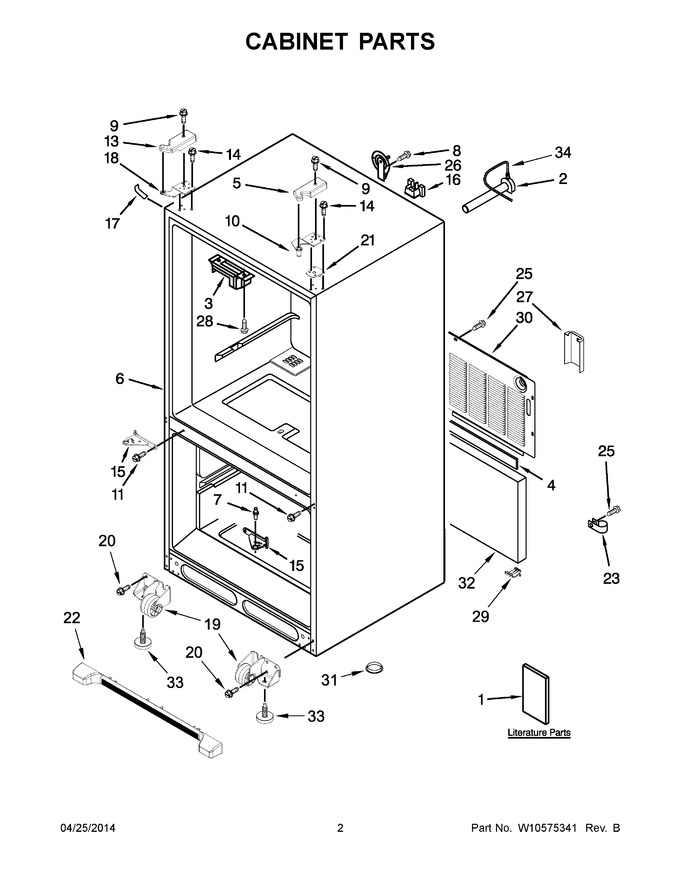

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10544193 | Tech Sheet |
|
- | |||||
| 1 | W10277319 | Energy Guide |
|
- | |||||
| 1 | W10366208 | Guide, Use & Care |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302BN) |
|
$ 20.29 | |||||
| 5 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302WN) |
|
$ 19.41 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.90 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205EDN) |
|
Immediately | $ 28.71 | ||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 13.25 | |||||
| 13 | WPW10337634 | Cover, Left Hinge (white) (Replaces: W10337634N) |
|
Immediately | $ 21.19 | ||||
| 13 | W10337647 | Cover, Left Hinge (black) (Replaces: W10337647N) |
|
Immediately | $ 21.00 | ||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10918113 | Hinge, Center Left Hand (white) (Replaces: 13000001WD) |
|
$ 88.13 | |||||
| 15 | W10918164 | Hinge, Center Right Hand (black) (Replaces: 13000008ED) |
|
$ 82.38 | |||||
| 15 | W10918164 | Hinge, Center Left Hand (black) (Replaces: 13000007ED) |
|
$ 82.38 | |||||
| 15 | 13000002WD | Hinge, Center Right Hand (white) |
|
$ 144.89 | |||||
| 16 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 21.21 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 18 | W11592375 | Top Hinge (left Hand) (Replaces: 12963204EDN) |
|
$ 28.73 | |||||
| 19 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | 12999502 | Shim, Hinge (right Hand) |
|
$ 90.54 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 133.34 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 132.38 | |||||
| 23 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 30 | W10210980 | Cover, Unit |
|
$ 183.19 | |||||
| 31 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 32 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 33 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 34 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 |
