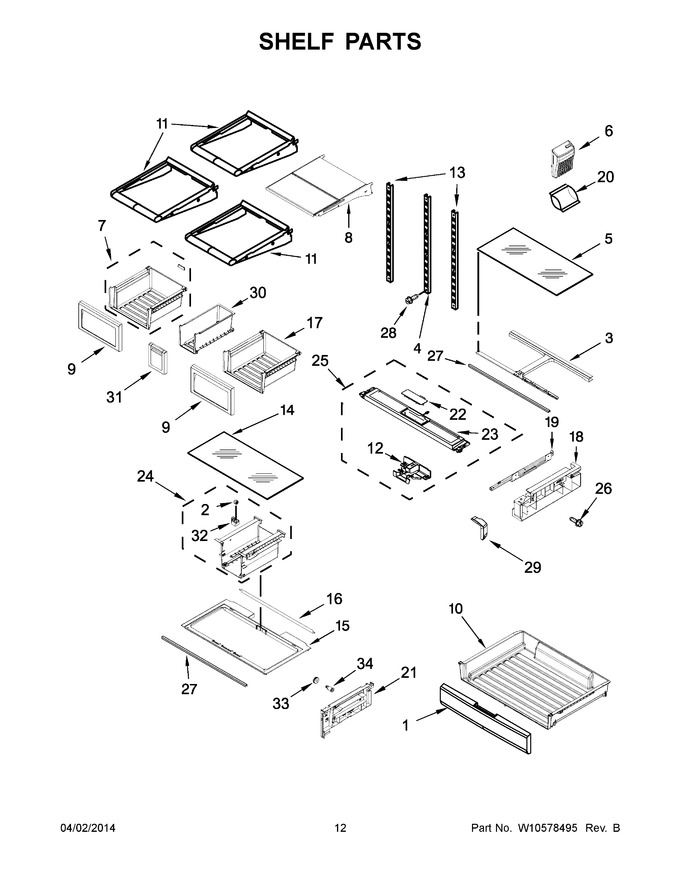

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10510417		Front, Pantry   (Replaces: W10510417)				$ 95.04
2	W10248789		Roller, Center				$ 17.43
3	W10515051		Support, Pantry				$ 62.37
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
5	WPW10628815		Glass, Pantry   (Replaces: W10628815)				$ 133.31
6	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 29.35
7	W10850377		Pan, Crisper   (Replaces: W10422706)			Immediately	$ 123.40
8	W10644139		Top Shelf Assembly		Appelez-nous	-
9	WPW10688114		Front Crisper Assembly   (Replaces: W10688114)			Immediately	$ 158.75
10	W10514690		Pan, Pantry		Appelez-nous	-
11	W11540779		Shelf Assembly   (Replaces: W10644137)				$ 137.23
12	W10512596		Knob, Pantry Temp Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
14	W10628814		Glass, Crisper				$ 56.29
15	WPW10423799		Cover, Crisper   (Replaces: W10423799)				$ 195.82
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 71.18
17	W10850377		Pan, Crisper   (Replaces: W10387757)			Immediately	$ 123.40
18	W10248798		Plate, Side Pantry (left Hand)				$ 97.50
18	W10248796		Plate, Side Pantry (right Hand)				$ 110.73
19	W10508327		Slide, Pantry (left Hand)				$ 270.96
19	W10508326		Slide, Pantry (right Hand)				$ 280.33
20	W10346771		Filter, Produce Preserver		Appelez-nous	-
21	W11173721		Plate, Crisper (left Hand)   (Replaces: W10530311)				$ 31.73
21	W10530310		Plate, Crisper (right Hand)				$ 26.72
22	W10554279		Housing, Pantry Temp Control		Appelez-nous	-
23	WPW10554285		Cover, Pantry Top   (Replaces: W10554285)				$ 153.57
24	W10662015		Assembly, Center Crisper Support   (Replaces: W10549605)				$ 78.94
25	W10554293		Cover Assembly, Front Pantry				$ 170.06
26	W10185612		Screw				$ 6.37
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 120.65
28	W10423560		Screw		Appelez-nous	-
29	W10248851		Front, Sideplate (pantry) (right Hand)			Immediately	$ 33.05
29	W10248852		Front, Sideplate (pantry) (left Hand)			Immediately	$ 27.90
30	WPW10387778		Pan, Crisper   (Replaces: W10387778)				$ 114.73
31	W11218695		Crisper, Front   (Replaces: W10423520)				$ 292.80
32	W10530314		Housing, Roller				$ 10.22
33	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 7.28
34	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
