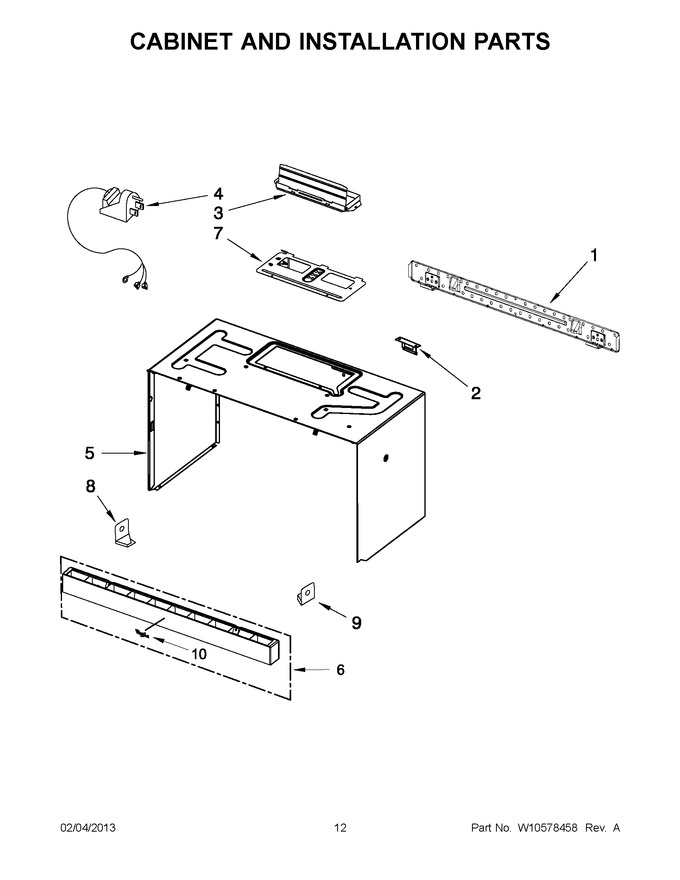

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting Microwave (Replaces: W10440498) |
|
Immediately | $ 22.22 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 33.48 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 76.13 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10313271) |
|
$ 19.40 | |||||
| 5 | WPW10462001 | Case, Outer (black) (Replaces: W10462001) |
|
$ 267.76 | |||||
| 6 | W10468664 | Grille, Vent (white) |
|
$ 35.56 | |||||
| 6 | W10571504 | Grille, Vent (stainless) |
|
$ 31.78 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 8 | W11026306 | Vent Holder, Left (white) (Replaces: W10393278) |
|
Immediately | $ 6.80 | ||||
| 9 | W10703282 | Vent Holder, Right (white) (Replaces: W10393276) |
|
$ 9.90 | |||||
| 10 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| NI | W10821385 | Miscellaneous, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 93.35 | ||||
| NI | W10190020 | Miscellaneous, Template, Upper |
|
$ 56.21 | |||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 12.02 | ||||
| NI | W10434804 | Miscellaneous, Harness, Main |
|
$ 159.59 | |||||
| NI | W10539840 | Miscellaneous, Harness, Pcba Ground Wire |
|
$ 22.57 | |||||
| NI | W10543255 | Miscellaneous, Harness, Hood Lamp To Turntable Motor |
|
$ 121.73 |
