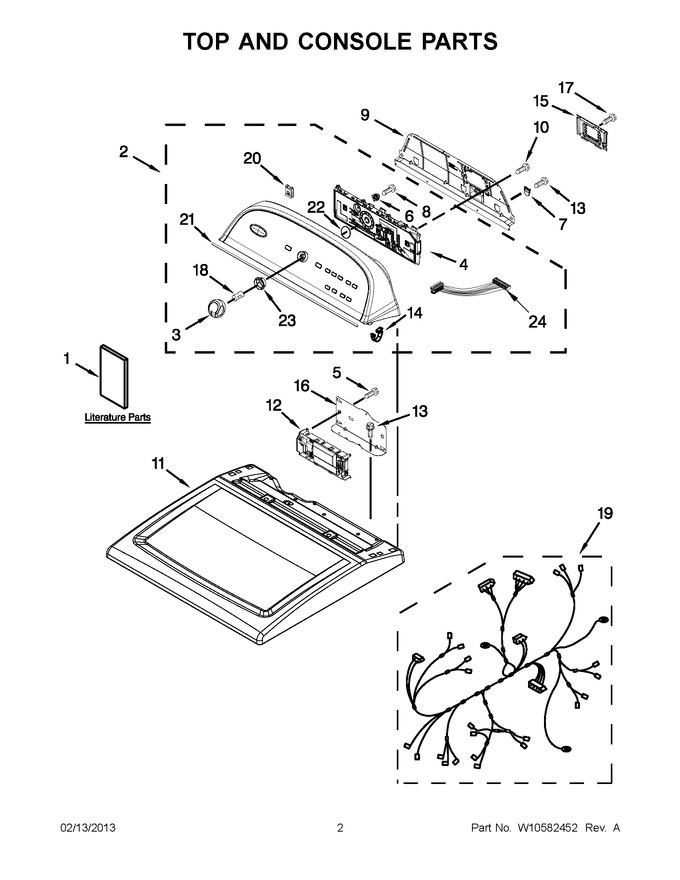

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329764		Instructions, Installation		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10423429		Owners Manual		Appelez-nous	-
2	W10414172		Console Assembly (complete)		Appelez-nous	-
3	WPW10251392		Knob Assembly   (Replaces: W10251392)				$ 53.60
4	WPW10269624		User Interface Assembly   (Replaces: W10269624)				$ 282.50
5	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
6	W10274524		Tensioner, Fascia		Appelez-nous	-
7	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
9	W10543896		Panel, Rear Console		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
11	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 193.59
12	WPW10317636		Control, Electronic   (Replaces: W10317636)			Immediately	$ 341.87
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
19	W10331569		Harness, Electric		Appelez-nous	-
20	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 7.32
21	W10280079		Seal, Console		Appelez-nous	-
22	W10323092		Seal, User Interface		Appelez-nous	-
23	W10325119		Spacer, Knob		Appelez-nous	-
24	W10285495		Cable, User Interface		Appelez-nous	-
