01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

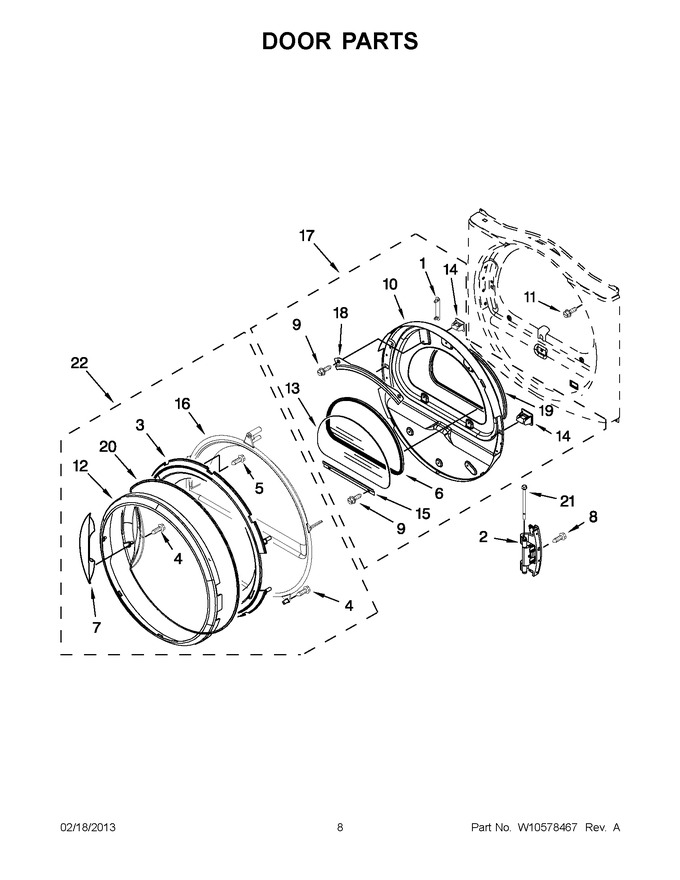

04 - Door Parts
05 - Burner Assembly
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10256915 | Plug, Hinge Hole (white) (Replaces: W10256915) |
|
$ 73.86 | |||||
| 2 | WPW10304672 | Hinge, Door Assembly (Replaces: 8578887) |
|
Immediately | $ 209.23 | ||||
| 3 | N/P | Door Screen & Frame Assembly (not Serviceable Part) |
|
- | |||||
| 4 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 5 | 3400618 | Screw |
|
$ 61.15 | |||||
| 6 | W11706993 | Seal, Window (Replaces: 8579663) |
|
$ 25.40 | |||||
| 7 | W10165344 | Handle, Door (white) |
|
$ 36.02 | |||||
| 8 | WPW10159996 | Screw (Replaces: W10159996) |
|
$ 7.67 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 10 | W11690171 | Inner Door Assembly (Replaces: W10363674) |
|
$ 184.04 | |||||
| 11 | WP355515 | Screw (Replaces: 355515) |
|
$ 7.63 | |||||
| 12 | 8565110 | Door, Outer Ring (white) |
|
$ 137.71 | |||||
| 13 | WPW10286878 | Window (Replaces: W10286878) |
|
$ 247.28 | |||||
| 14 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 15 | W10822054 | Retainer, Lower Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 16 | WP8580059 | Door,intermediate (Replaces: 8580059) |
|
$ 96.75 | |||||
| 17 | W10564641 | Inner Door Assembly |
|
$ 203.97 | |||||
| 18 | 8519356 | Retainer-window Upper |
|
- | |||||
| 19 | WPW10163915 | Seal, Door (Replaces: W10163915) |
|
Immediately | $ 119.44 | ||||
| 20 | W10405431 | Door, Screen Intermediate Assembly |
|
$ 158.92 | |||||
| 21 | 8565087 | Screw |
|
- | |||||
| 22 | W10371563 | Door, Outer (white) |
|
$ 215.87 |
