SELECT A DIAGRAM
New Model Search:

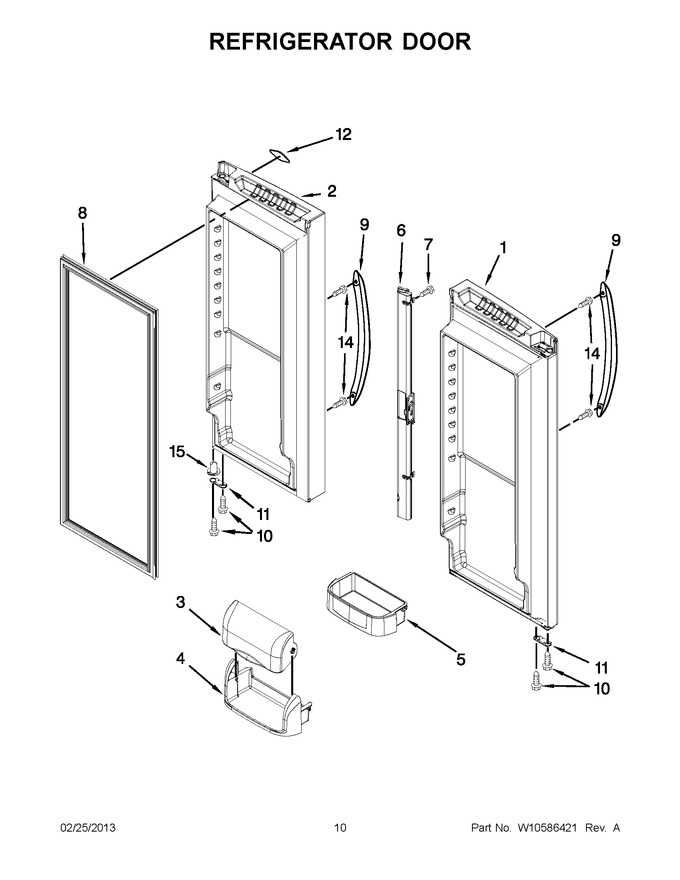

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107883SQ | Door, Left (stainless) (Replaces: 13107883S) |
|
$ 1,092.69 | |||||
| 2 | 13107856SQ | Door, Right (stainless) (Replaces: 13107856S) |
|
$ 895.13 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | 67004040 | Bucket, Door (medium) (Replaces: 12801902) |
|
$ 86.39 | |||||
| 5 | 12840005 | Bucket, Door (gallon) |
|
- | |||||
| 5 | 12840003 | Bucket, Door (bin, Shelf (gallon)) |
|
- | |||||
| 5 | WP67004041 | Bucket, Door (small) (Replaces: 12801901) |
|
$ 80.11 | |||||
| 6 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
$ 170.11 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W10830162 | Gasket, Door (grey (right Hand)) (Replaces: W10443225) |
|
Immediately | $ 223.74 | ||||
| 8 | W10830283 | Gasket, Door (grey (left Hand)) (Replaces: W10443269) |
|
$ 228.31 | |||||
| 9 | W10291144N | Handle, Door (stainless) |
|
- | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 12 | WPW10170766 | Badge, Standard Maytag (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 14 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 15 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 |
