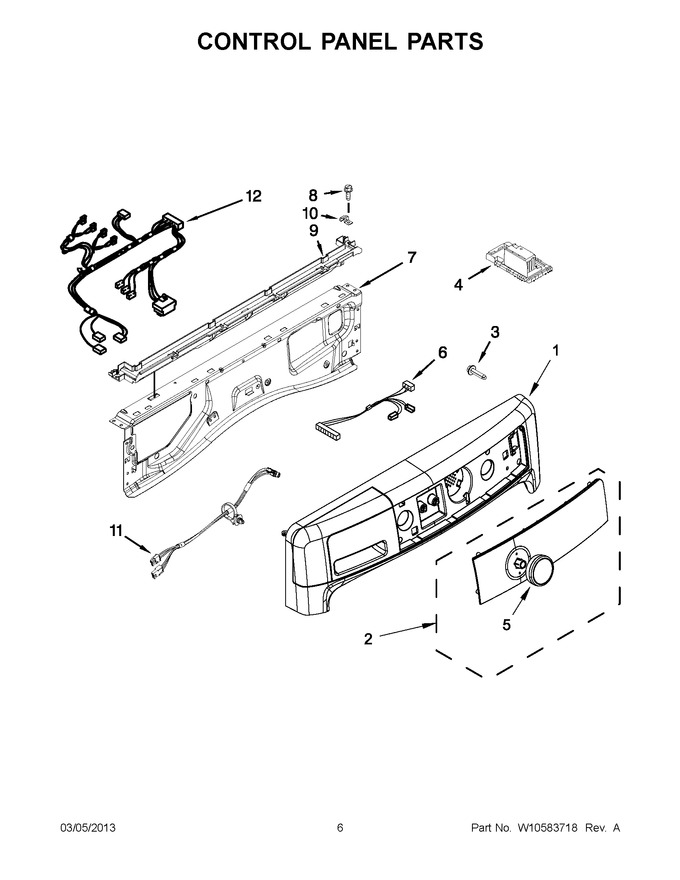

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10547983 | Assembly, Console (granite) |
|
$ 220.97 | |||||
| 1 | W10468505 | Assembly, Console (white) |
|
$ 264.77 | |||||
| 2 | WPW10491031 | Iml Assembly (white) (Replaces: W10491031) |
|
$ 667.94 | |||||
| 2 | W10547984 | Iml Assembly (granite) |
|
$ 659.33 | |||||
| 3 | W10489172 | Screw |
|
$ 10.78 | |||||
| 4 | W10565860 | Control Unit, Central |
|
- | |||||
| 5 | W10853910 | Knob, Control (white) (Replaces: W10519048) |
|
$ 48.55 | |||||
| 6 | WPW10486216 | Harness, Ui Jumper (Replaces: W10486216) |
|
$ 16.20 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 81.85 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.24 | |||||
| 11 | WPW10486571 | Harness, Ui (Replaces: W10486571) |
|
$ 17.52 | |||||
| 12 | WPW10550613 | Harness, Main (upper) (Replaces: W10550613) |
|
$ 231.04 |
