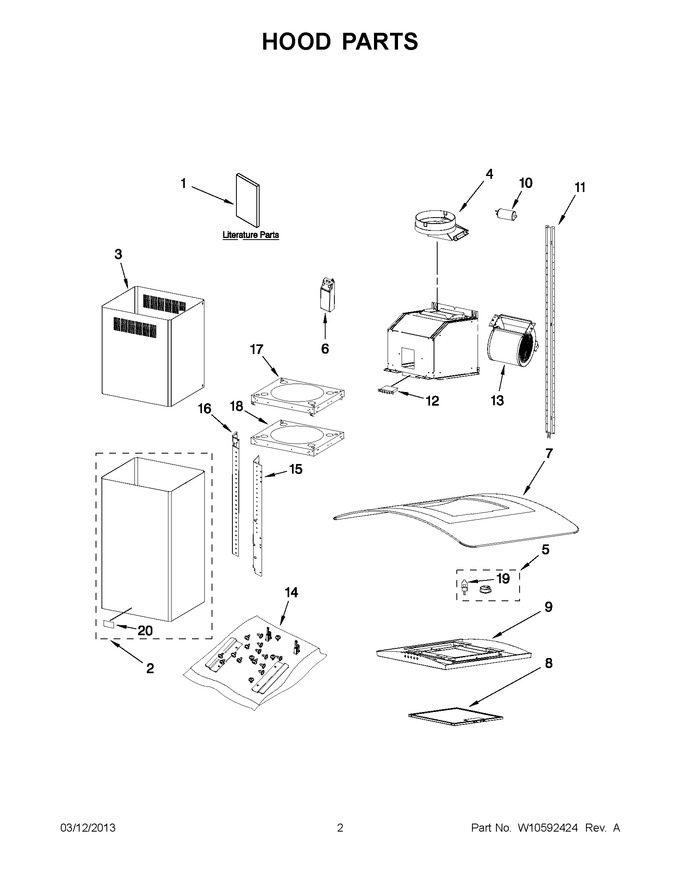

01 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292168		Use & Care Guide		Appelez-nous	-
2	W11321565		Chimney, Lower   (Replaces: W10293061)				$ 358.34
3	W10351831		Chimney, Upper   (Replaces: W10293049)				$ 301.22
4	W10847841		Damper, Hood (plastic)   (Replaces: W10592040)				$ 140.43
5	WPW10562734		Assembly, Light Puck   (Replaces: W10562734)			Immediately	$ 119.55
6	W11186486		Transformer (110-127v,20-6w)   (Replaces: 8186686)			Immediately	$ 206.24
7	W10313849		Glass (36``)				$ 215.96
8	W10169961A		Filter, Grease   (Replaces: W10169961)			Immediately	$ 37.65
9	W10313851		Assembly, Case		Appelez-nous	-
10	W10256657		Capacitor			Immediately	$ 84.93
11	W10293054		Support, Vertical Duct Cover				$ 30.63
12	W11577780		Control, Motor   (Replaces: W10313847)				$ 228.09
13	WPW10291577		Fan Assembly   (Replaces: W10291577)				$ 485.51
14	W10576678		Hardware, Installation				$ 52.23
15	W10351905		Support, Lower Vertical   (Replaces: W10313848)		Appelez-nous	-
16	W10293063		Support, Upper Vertical				$ 77.67
17	W10297052		Support, Horizontal Upper		Appelez-nous	-
18	W10293065		Support, Horizontal Lower		Appelez-nous	-
19	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
20	W11178521		Nameplate (grey)   (Replaces: W10434972)			Immediately	$ 56.82
NI	W10412939		Accessories, Charcoal Filter Kit (for Non-vented Installations Only)			Immediately	$ 66.98
NI	W10272078		Accessories, Chimney Extension Kit				$ 1,005.63
NI	W10446915		Accessories, 6`` Makeup Air Kit				$ 316.52
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11430929		Accessories, Recirculation Kit (for Non-vented Installations Only)   (Replaces: W10294734)				$ 153.23

    View Diagram in Separate Window       Print Part List
