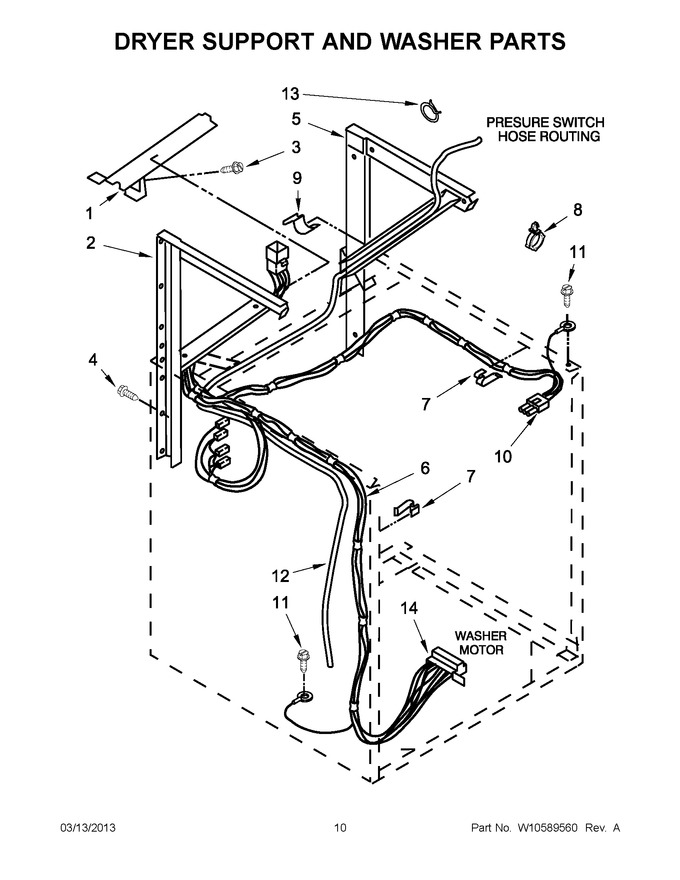

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 694304 | Cover, Channel |
|
- | |||||
| 2 | W11174025 | Support, Dryer (l.h.) (Replaces: 692647) |
|
$ 48.12 | |||||
| 3 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 4 | W11676450 | Screw (Replaces: 3400000) |
|
$ 13.28 | |||||
| 5 | W11174024 | Support, Dryer (r.h.) (Replaces: 692646) |
|
$ 123.40 | |||||
| 6 | W10303815 | Harness, Lower (automatic) |
|
$ 228.50 | |||||
| 7 | 8528351 | Clip, Harness Wiring (Replaces: 3347812) |
|
- | |||||
| 8 | 8559320 | Clip, Push-in (Replaces: 3352501) |
|
$ 43.33 | |||||
| 9 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 10 | WP62889 | Plug, Terminal (3-way) (connects With Automatic Lid Switch Harness) (Replaces: 62889) |
|
$ 7.24 | |||||
| 11 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 12 | W10834213 | Hose, Pressure Switch (Replaces: W10279264) |
|
Immediately | $ 29.93 | ||||
| 13 | W10251893 | Clamp, Hose |
|
- | |||||
| 14 | WP62505 | Block, Disconnect (motor) (Replaces: 62505) |
|
$ 22.42 |
