01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

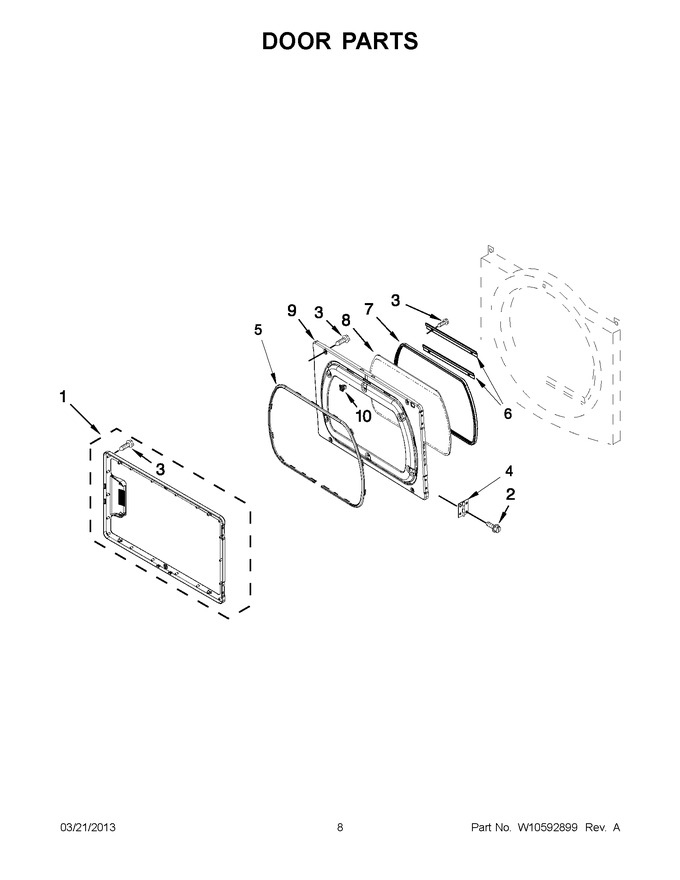

| 1 | W10461891 | Door, Outer (cosmetallic) |
|
$ 322.51 | |||||
| 2 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 3 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 4 | W11175815 | Hinge Assembly (silver) (Replaces: 3389247) |
|
$ 76.93 | |||||
| 5 | WPW10354795 | Seal-door (Replaces: W10354795) |
|
$ 117.11 | |||||
| 6 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 7 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 25.53 | |||||
| 8 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 237.25 | |||||
| 9 | W10822056 | Door, Inner (Replaces: W10470571) |
|
$ 197.23 | |||||
| 10 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 |
