SELECT A DIAGRAM

01 - Control Panel & Separator Parts


02 - Lower Cabinet & Front Panel Parts

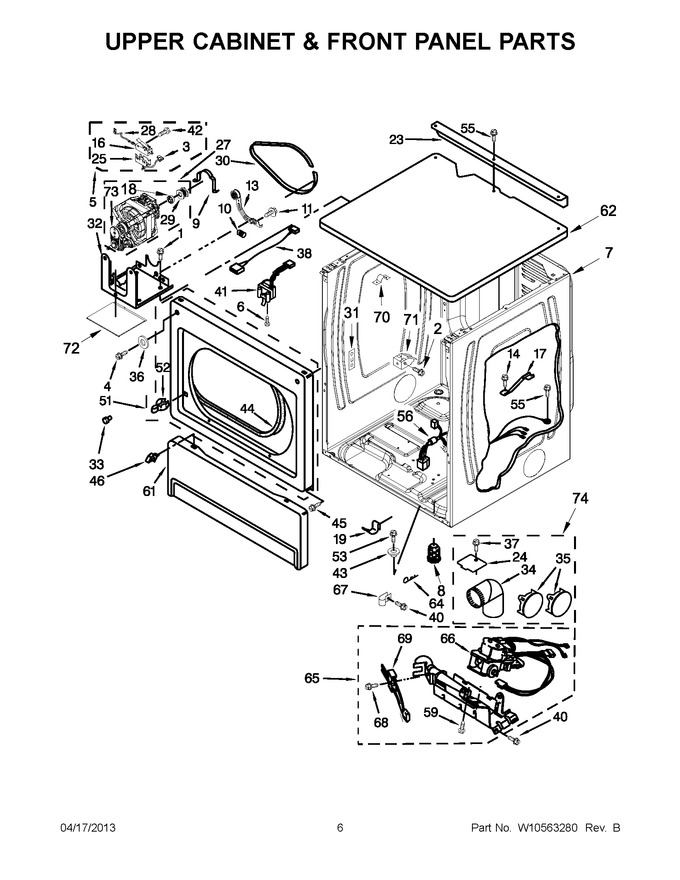

03 - Upper Cabinet & Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Burner Assembly


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.62
2	681615		Screw   (Replaces: 3391915)				$ 13.11
3	8539892		Wire-motor To-belt-switch		Appelez-nous	-
4	WP3400077		Screw   (Replaces: 3400077)				$ 6.56
5	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 24.95
6	WP3395530		Screw   (Replaces: 697773)				$ 7.71
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 396.15
8	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 76.96
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
14	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
16	WP8564010		Assembly, Switch & Actuator   (Replaces: 8564010)				$ 93.70
17	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
18	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
23	3979115		Bracket, Angle		Appelez-nous	-
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.47
25	8564011		Bracket, Switch				$ 17.17
27	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 390.48
28	W10167613		Wire, Belt Switch		Appelez-nous	-
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.50
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
33	693152		Bumper				$ 10.36
34	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
35	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.75
36	W11089212		Washer   (Replaces: 3392186)				$ 9.95
37	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.45
38	8283298		Jumper, Door Switch				$ 79.13
40	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
41	WPW10237959		Switch, Door   (Replaces: 3406109)			Immediately	$ 56.37
42	777849		Screw   (Replaces: W10002600)				$ 6.62
43	3389233		Bushing		Appelez-nous	-
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 7.30
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
51	W10242810		Front Panel (includes Illus. 44) (white)   (Replaces: W10192882)				$ 348.00
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	3400523		Bolt, Security		Appelez-nous	-
55	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
56	W10169686		Harness (upper)				$ 294.16
59	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 6.80
61	WP3406797		Toe Panel (white)   (Replaces: 697215)				$ 225.23
62	3389351		Top (white)		Appelez-nous	-
64	W10117347		Cotter Pin		Appelez-nous	-
65	W11676916		Burner Assembly (60 Hz)   (Replaces: W10135231)				$ 256.32
66	WPW10141728		Valve, Gas 60 Hz. (complete)   (Replaces: W10141728)				$ 323.78
67	3387561		Clamp, Pipe		Appelez-nous	-
68	WPW10366705		Screw   (Replaces: 3393909)				$ 7.09
69	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
70	WP98997		Clip   (Replaces: 98997)				$ 10.48
71	3391846		Clip, Front Panel				$ 19.99
72	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 20.96
73	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
74	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75

    View Diagram in Separate Window       Print Part List
