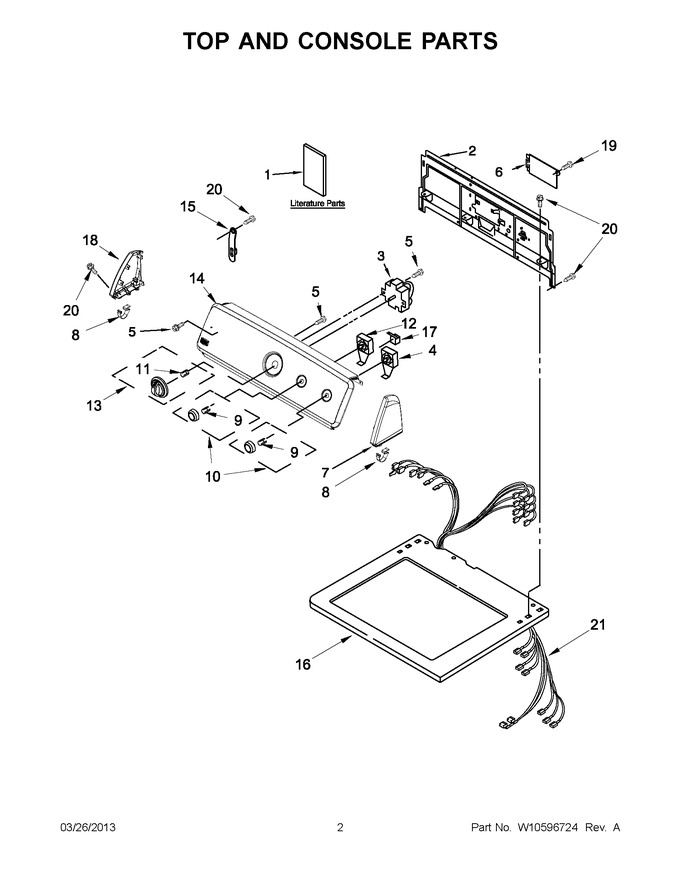

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10536446		Wiring Diagram		Appelez-nous	-
1	W10462987		Use & Care Guide		Appelez-nous	-
1	W10454272		Installation Instructions		Appelez-nous	-
2	W10121161		Panel, Rear Console		Appelez-nous	-
3	W10463293		Assembly, Timer (60hz.)		Appelez-nous	-
4	W10238464		Switch, Push-to-start		Appelez-nous	-
5	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
6	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
7	W10193823		End Cap (right) (white)		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
9	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
10	WPW10317455		Assembly, Control Knob (grey)   (Replaces: W10317455)				$ 57.00
11	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
12	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
13	WPW10317454		Assembly, Timer Knob (grey)   (Replaces: W10317454)				$ 57.12
14	W10474739		Console (white)		Appelez-nous	-
15	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.35
16	8559781		Top (white)		Appelez-nous	-
17	W10135122		Mini Buzzer (non Adjustable) (with Leads)		Appelez-nous	-
18	W10193826		End Cap (left) (white)		Appelez-nous	-
19	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
20	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
21	W10450296		Harness, Main		Appelez-nous	-
