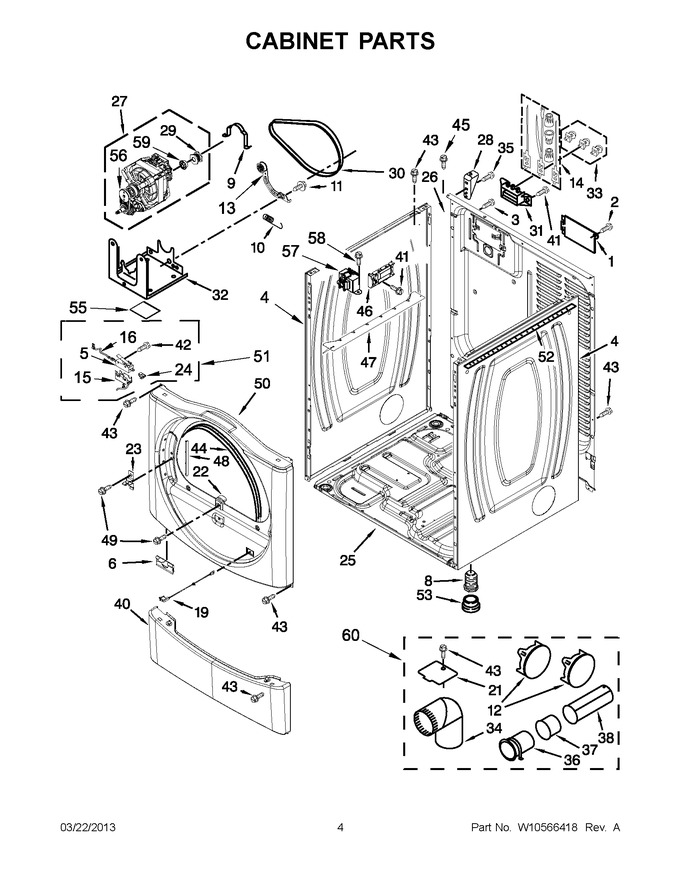

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
2	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
3	W10850756		Screw   (Replaces: 8533974)				$ 7.38
4	W10542714		Panel, Side (white)				$ 315.52
5	WP8564010		Assembly, Switch & Actuator   (Replaces: 8564010)				$ 93.70
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.75
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
14	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
15	8564011		Bracket, Switch				$ 17.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
19	WPW10350910		Assembly, Door Switch   (Replaces: W10350910)			Immediately	$ 78.85
21	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 8.47
22	8580015		Ramp, Door				$ 79.42
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 7.79
24	8539892		Wire-motor To-belt-switch		Appelez-nous	-
25	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 328.82
26	8565059		Panel, Rear				$ 244.90
27	W11234001		Assembly, Motor 60 Hz.   (Replaces: W10396034)			Immediately	$ 390.48
28	W10137398		Stop, Top Panel		Appelez-nous	-
29	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 45.92
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
33	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
34	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
35	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
36	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
37	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 74.61
38	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
40	WP8540621		Toe Panel (white)   (Replaces: 8540621)				$ 170.44
41	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
42	777849		Screw   (Replaces: W10002600)				$ 6.62
43	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
46	WPW10166305		Control Board   (Replaces: W10166305)				$ 174.51
47	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 161.72
48	8565043		Plug, Front Panel				$ 87.56
49	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.08
50	W10874032		Panel, Front (white)   (Replaces: W10549665)				$ 207.41
51	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 24.95
52	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
53	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.39
55	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 20.96
56	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
57	WPW10131839		Transformer   (Replaces: W10131839)				$ 126.21
58	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
59	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
60	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
