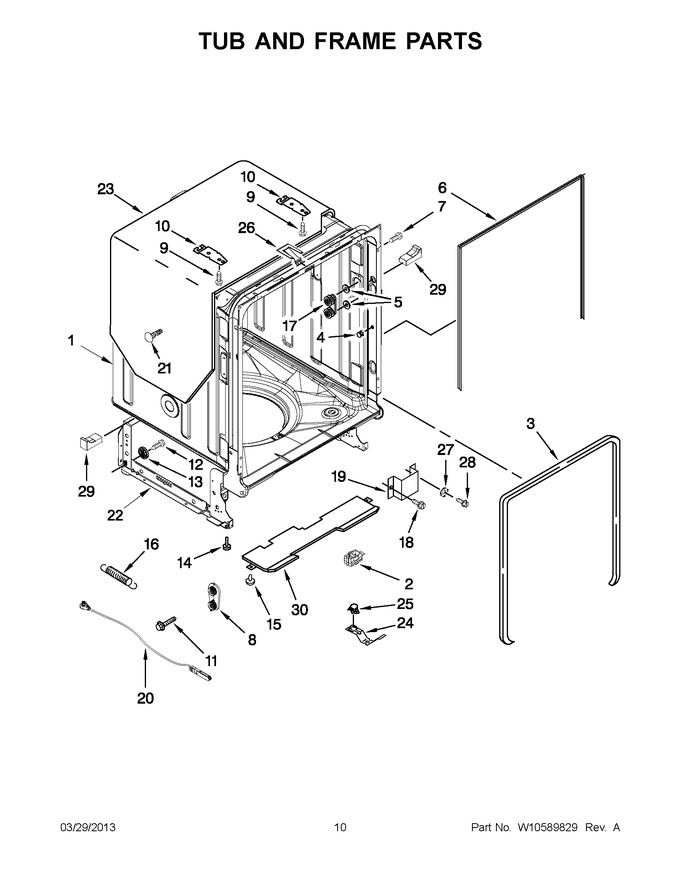

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10681507 | Tub Assembly (includes Heater Assembly) (Replaces: W10511204) |
|
$ 471.38 | |||||
| 2 | W10292870 | Shield, Thermostat |
|
$ 22.16 | |||||
| 3 | W11177741 | Gasket, Tub (Replaces: W10300924) |
|
Immediately | $ 72.39 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 13.55 | ||||
| 5 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 9.04 | ||||
| 6 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 75.88 | ||||
| 7 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 69.17 | ||||
| 8 | WPW10084086 | Door Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 29.72 | ||||
| 9 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 10 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 17.40 | ||||
| 11 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 6.80 | |||||
| 12 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 9.74 | |||||
| 13 | WPW10190778 | Wheel Leg (Replaces: W10190778) |
|
Immediately | $ 13.38 | ||||
| 14 | 8193716 | Leveler, Leg (Replaces: W10304228) |
|
$ 80.06 | |||||
| 15 | WP3400924 | Retainer, Push In (Replaces: 3400924) |
|
Immediately | $ 40.85 | ||||
| 16 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 33.02 | ||||
| 17 | WPW10078083 | Wheel And Mount Assembly (Replaces: W10078083) |
|
Immediately | $ 80.91 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.42 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.58 | |||||
| 20 | 8194001 | Cable, Door (Replaces: W10158291) |
|
Immediately | $ 38.75 | ||||
| 21 | WP304666 | Retainer (Replaces: 304666) |
|
$ 26.51 | |||||
| 22 | WPW10681564 | Support Assembly, Rear (Replaces: W10190776) |
|
$ 67.78 | |||||
| 23 | W11086533 | Shield, Tub Sound (Replaces: 8573240) |
|
Immediately | $ 28.17 | ||||
| 24 | W10300703 | Bracket, Thermostat |
|
$ 18.44 | |||||
| 25 | WPW10195091 | Thermostat (Replaces: W10339563) |
|
Immediately | $ 36.55 | ||||
| 26 | WPW10300779 | Strike, Latch (Replaces: W10300779) |
|
Immediately | $ 91.23 | ||||
| 27 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 10.63 | |||||
| 28 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.42 | |||||
| 29 | W10195631 | Spacer, Tub/brace (right Hand) |
|
$ 15.47 | |||||
| 29 | W10195630 | Spacer, Tub/brace (left Hand) |
|
$ 15.58 | |||||
| 30 | WPW10746770 | Sound Insulation, Bottom (Replaces: W10195368) |
|
$ 40.36 |
