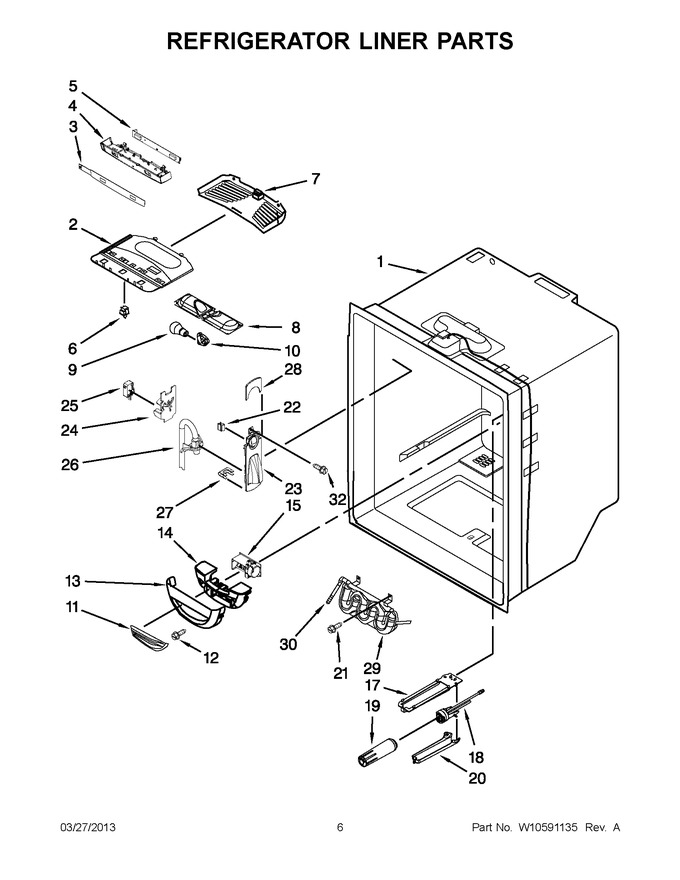

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464764 | Module, Light |
|
$ 107.02 | |||||
| 3 | W10218674 | Keyboard |
|
- | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 211.36 | ||||
| 5 | WPW10319823 | Board, Control (Replaces: W10319823) |
|
$ 285.39 | |||||
| 6 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 35.18 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501N) |
|
$ 95.42 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 105.97 | ||||
| 9 | WP67002552 | Bulb, Light (Replaces: A0282808V) |
|
Immediately | $ 11.11 | ||||
| 10 | W11447232 | Socket, Light (Replaces: W10134764V) |
|
Immediately | $ 12.48 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
$ 7.70 | |||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 11.90 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 106.79 | |||||
| 14 | W11750607 | Insulation-damper (Replaces: 13012402) |
|
$ 45.14 | |||||
| 15 | W10221218 | Control, Damper |
|
- | |||||
| 17 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 15.08 | ||||
| 18 | W11844302 | Head, Water Filter (Replaces: 12590622) |
|
$ 139.39 | |||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: 13040214) |
|
Immediately | $ 49.99 | ||||
| 20 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 78.08 | ||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.54 | |||||
| 22 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 23 | WPW10585703 | Facade, Dispenser (Replaces: W10585703) |
|
Immediately | $ 70.17 | ||||
| 24 | W11515355 | Plate, Dispenser (Replaces: W10585699) |
|
Immediately | $ 7.72 | ||||
| 25 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 65.12 | |||||
| 26 | W11677725 | Guide, Waterline (Replaces: 12707206) |
|
$ 22.28 | |||||
| 27 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 17.24 | |||||
| 28 | W11519867 | Facade, Dispenser (Replaces: 12707005) |
|
Immediately | $ 23.72 | ||||
| 29 | W11229977 | Tank, Water (Replaces: 12706112) |
|
Immediately | $ 162.26 | ||||
| 30 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 33.29 | ||||
| 32 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10226506 | Harness, Control (refrigerator) |
|
- |
